65 11 070 Removing and installing/replacing CD changer

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove storage compartment at rear left. Refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .

Unscrew nuts (1).

Lift CD changer (2) gently in direction of arrow and disconnect plug connections.

Remove CD changer (2).

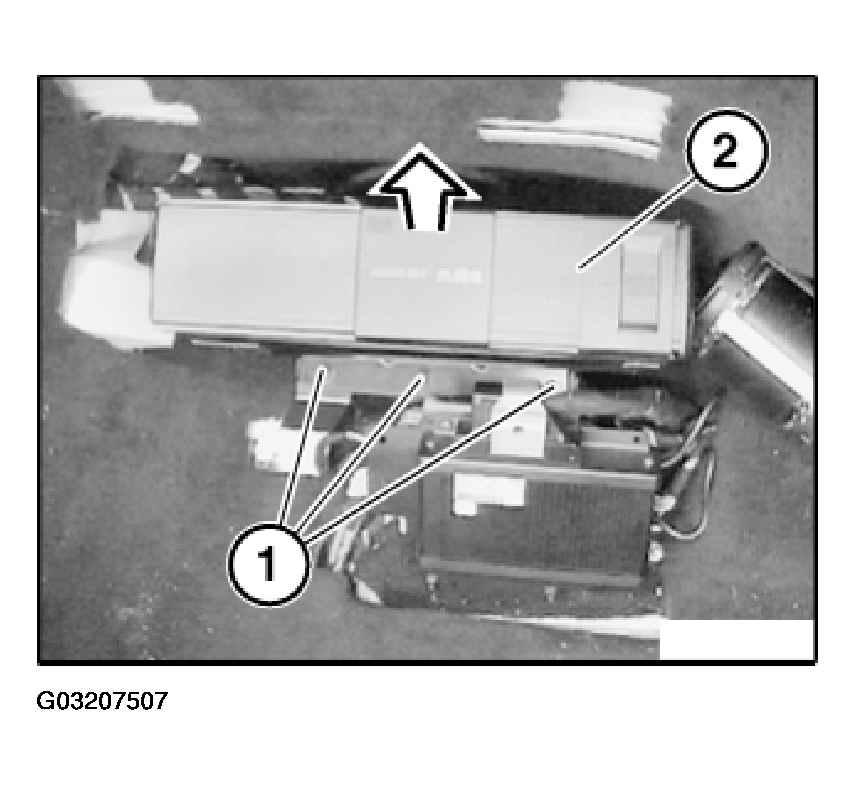

Fig 1: Removing CD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Loosen screws (1).

Remove holder for CD changer (2).

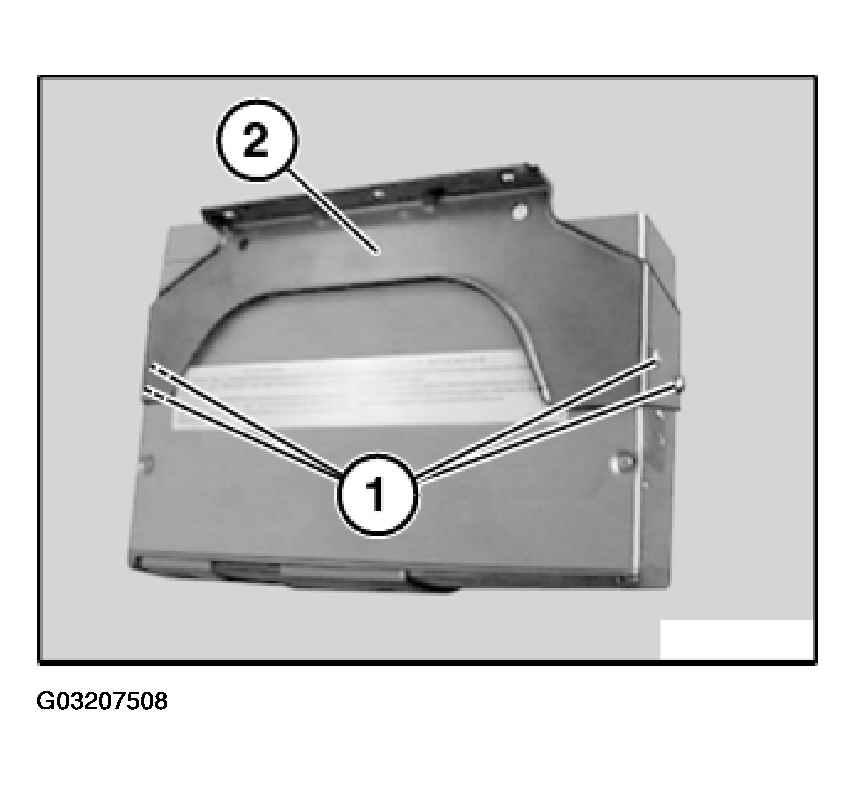

Fig 2: Removing CD Changer Holder

Courtesy of BMW OF NORTH AMERICA, INC.
