65 75 550 Removing and installing/replacing pitch sensor

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove storage compartment at rear right. Refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .

Withdraw general module (1) from holder (2).

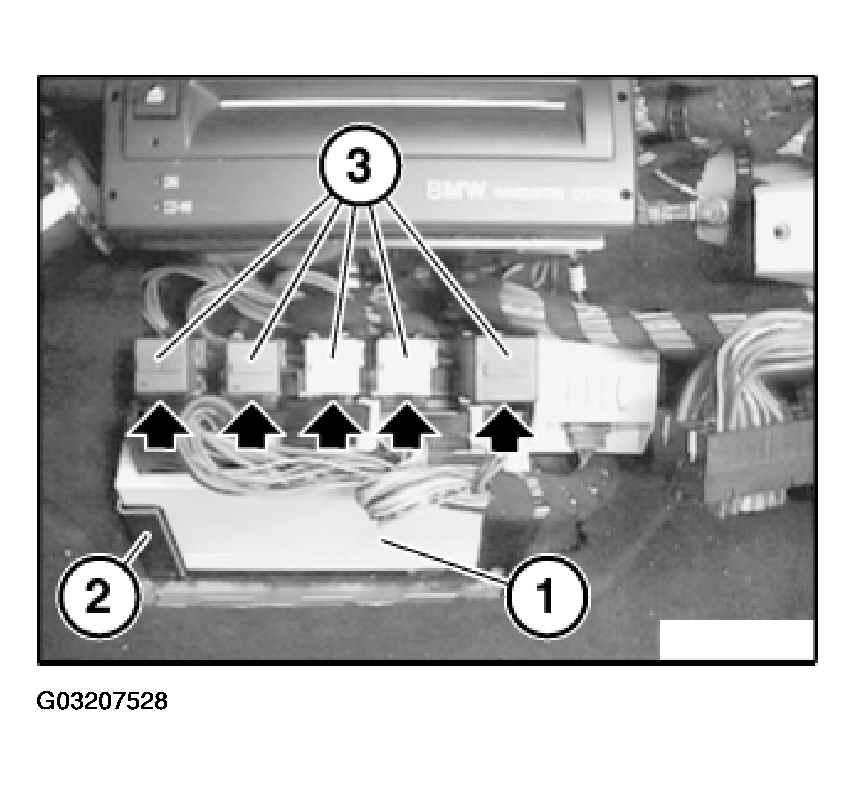

Fig 1: Withdrawing General Module

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock relay receptacle (3) and detach towards top.

Disconnect plug connection (1).

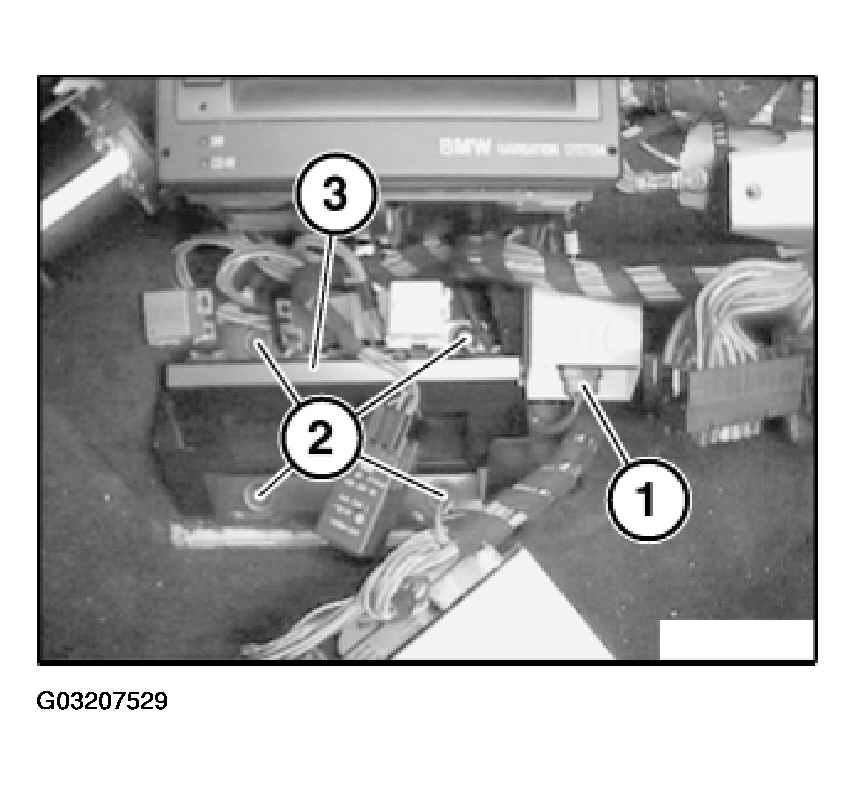

Fig 2: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Remove holder (3).

Unlock pitch sensor (1) and detach in direction of arrow.

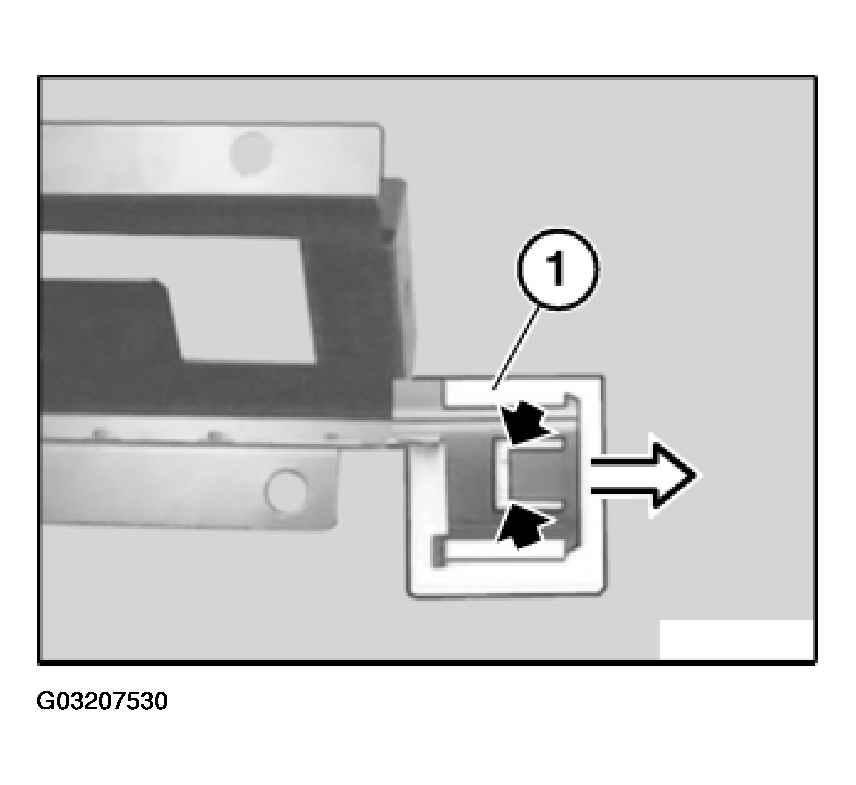

Fig 3: Removing Pitch Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Allow pitch sensor (1) to snap audibly into place.
