64 11 845 Replacing servodrive of defrosting flaps

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

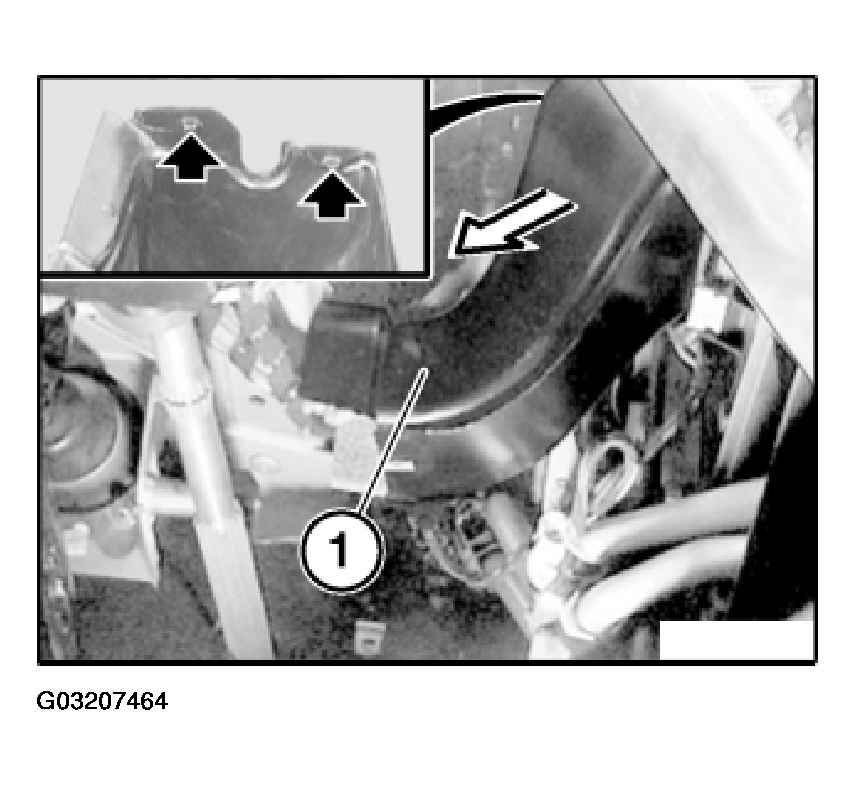

Unclip air duct for footwell on left (1) at mounts and remove in direction of arrow.

Fig 1: Removing Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, picture shows steering lock/ignition starter switch removed.

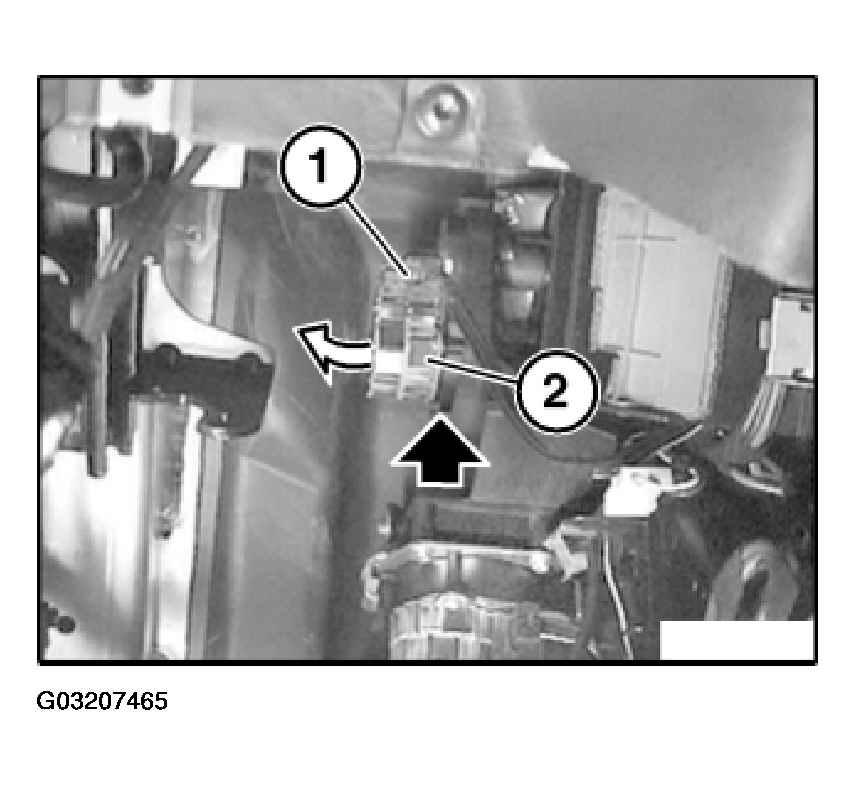

Disconnect plug connection (1).

Fig 2: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip servodrive (2) and pull out in direction of arrow.

Installation:

If necessary, align shaft of ventilation flaps to position of servodrive.

Fig 3: Aligning Shaft Of Ventilation Flaps

Courtesy of BMW OF NORTH AMERICA, INC.
