64 11 839 Replacing servodrive of footwell flap

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove heating controls. Refer to 64 11 748 Removing and installing heater control .

Disconnect plug connection (1).

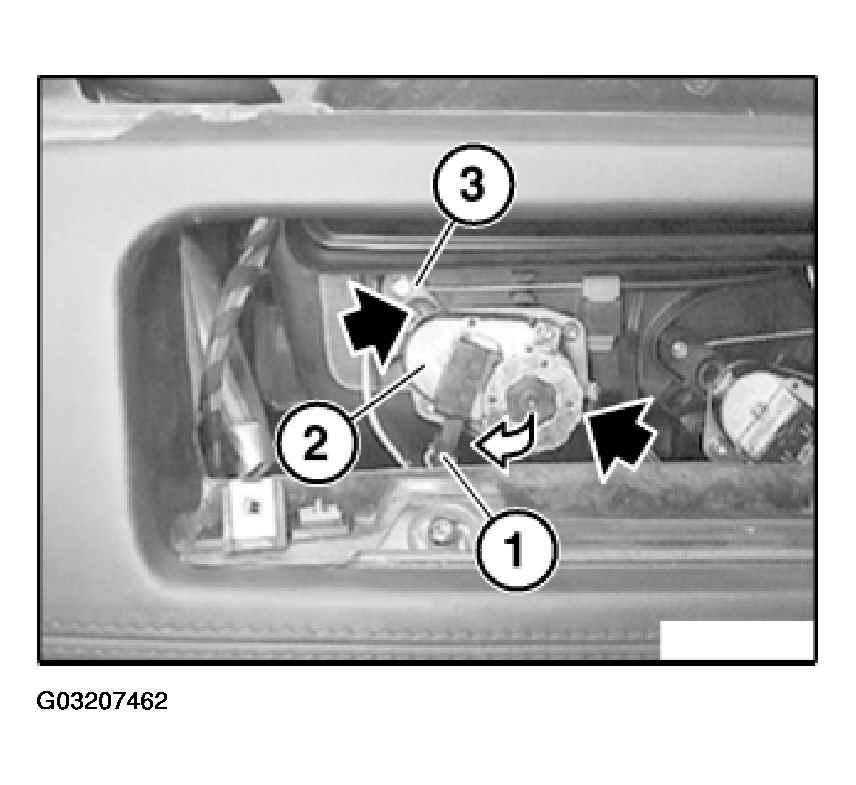

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip servodrive (2) and pull out in direction of arrow.

Installation:

Ensure lever (3) is correctly seated.

Installation:

If necessary, align shaft of ventilation flaps to position of servodrive.

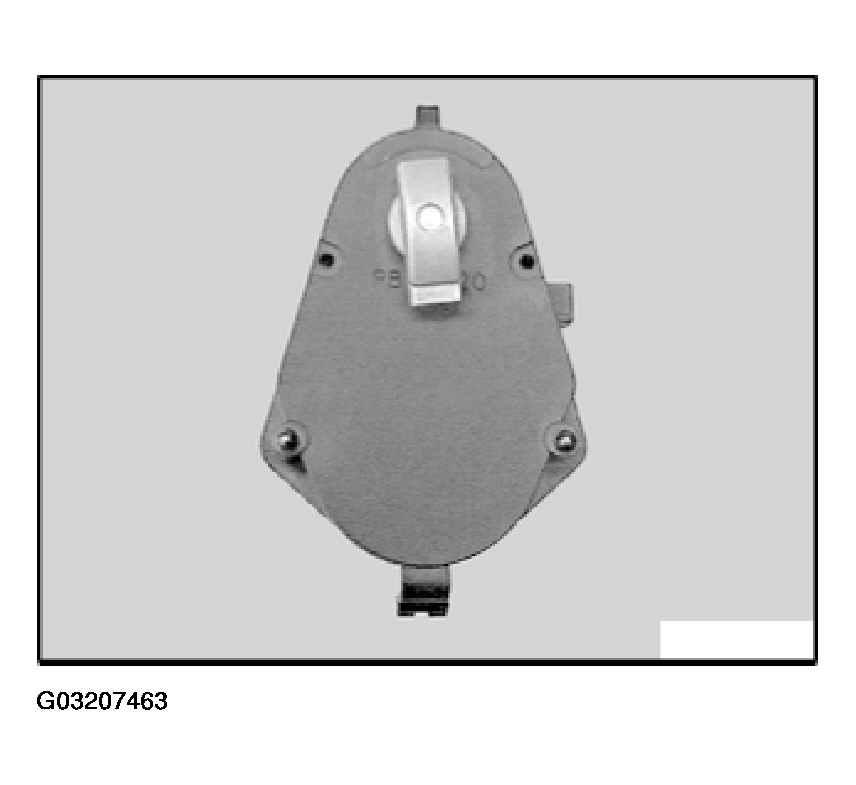

Fig 2: Aligning Shaft Of Ventilation Flaps

Courtesy of BMW OF NORTH AMERICA, INC.
