64 11 331 Replacing heating controls

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove heating controls. Refer to 64 11 748 Removing and installing heater control .

NOTE: Carry out coding (refer to Diagnosis and Information System).

Detach control knobs (1) in direction of arrow from heater controls.

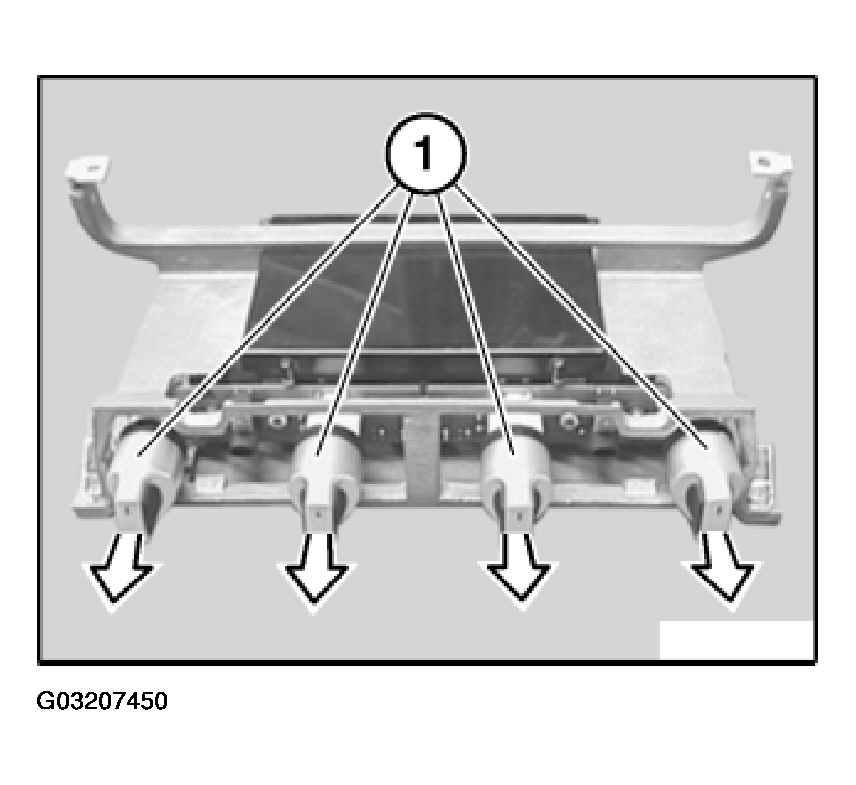

Fig 1: Detaching Control Knobs From Heater Controls
G03207450Courtesy of BMW OF NORTH AMERICA, INC.
