64 53 510 Removing and installing / replacing drier flask for air conditioner

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Refrigerant drawn off from A/C system. Refer to 64 50 009 Drawing off, evacuating and filling A/C system (R 134a) .

Follow instructions for dryer bottle replacement. Refer to 64 53 ... Notes on replacing drier bottle or drier insert .

Remove right intake filter housing. Refer to 13 71 020 REMOVING AND INSTALLING RIGHT INTAKE FILTER HOUSING .

NOTE: Plug lines (2) if A/C system remains open for longer than one hour.

Loosen screws (1).

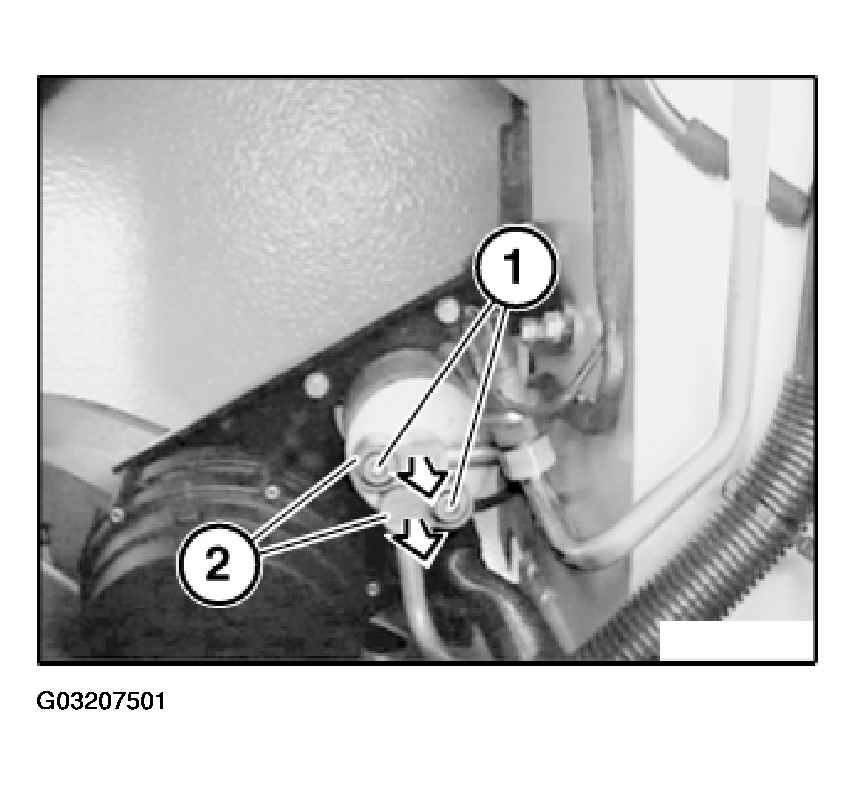

Fig 1: Detaching Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Detach lines (2) in direction of arrow.

Installation:

Replace sealing rings.

Loosen screws (1).

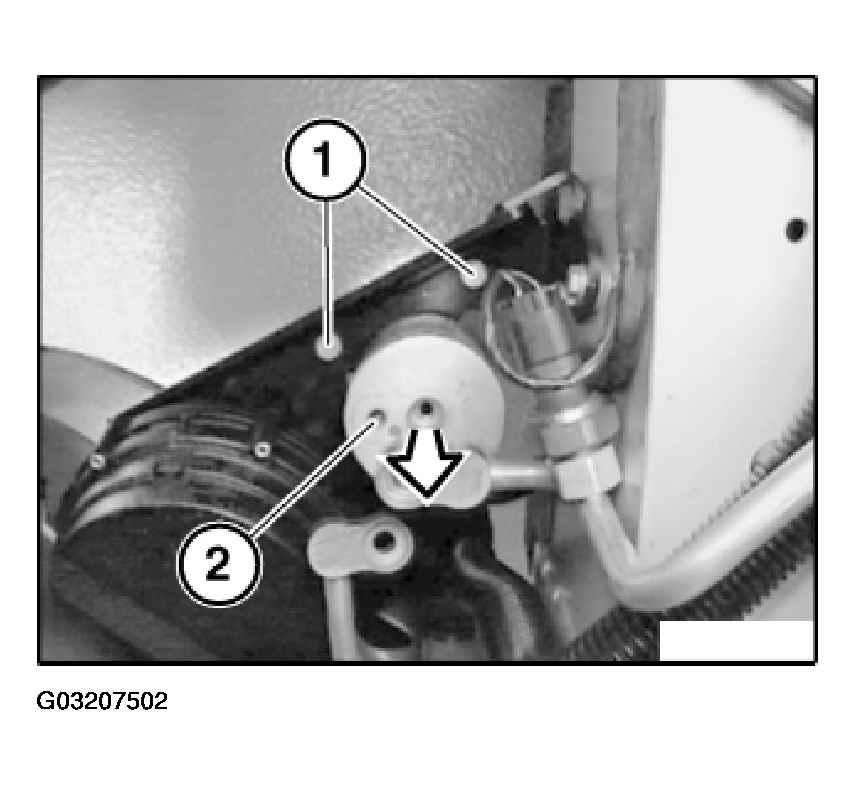

Fig 2: Removing Dryer Bottle

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dryer bottle (2) in direction of arrow.

NOTE: In event of warranty application, seal line openings with plugs of new dryer bottle.
