64 52 520 Removing and installing/replacing complete A/C compressor

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Risk of damage!
Follow instructions for compressor replacement without fail. Refer to 64 52 ... Instructions for compressor replacement .

NOTE: A/C system is drawn off. Refer to 64 50 009 Drawing off, evacuating and filling A/C system (R 134a) .

Remove A/C compressor drive belt. Refer to 11 28 050 REPLACING A/C COMPRESSOR DRIVE BELT (S62) .

Disconnect plug connection (1).

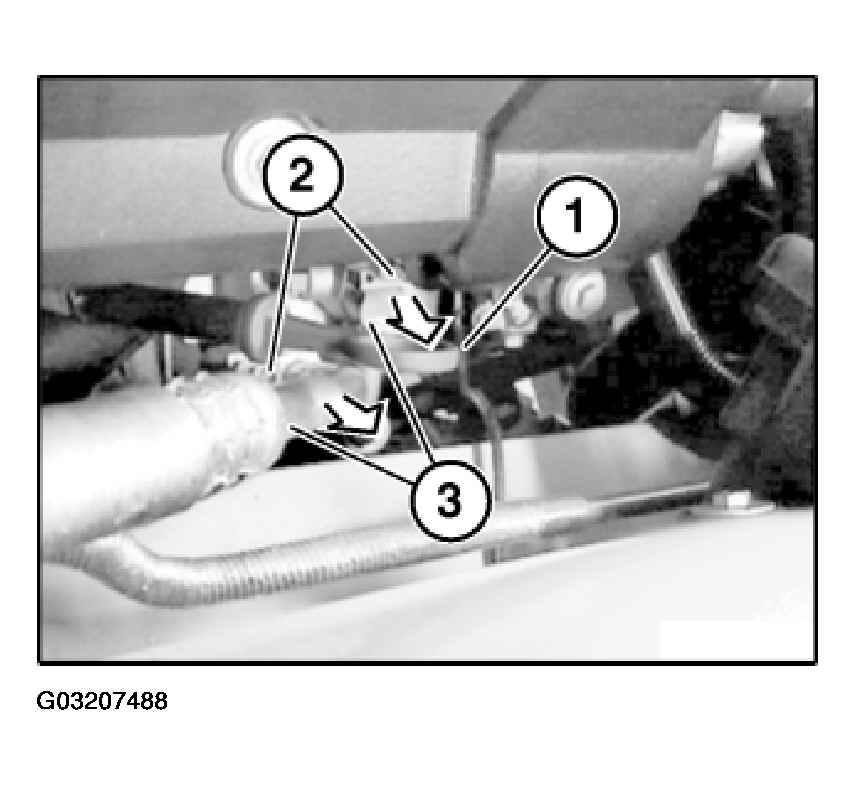

Fig 1: Detaching Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and detach lines (3) in direction of arrow.

Installation:

Replace sealing rings.

Observe tightening torque, 64 52 1AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Loosen screws (1).

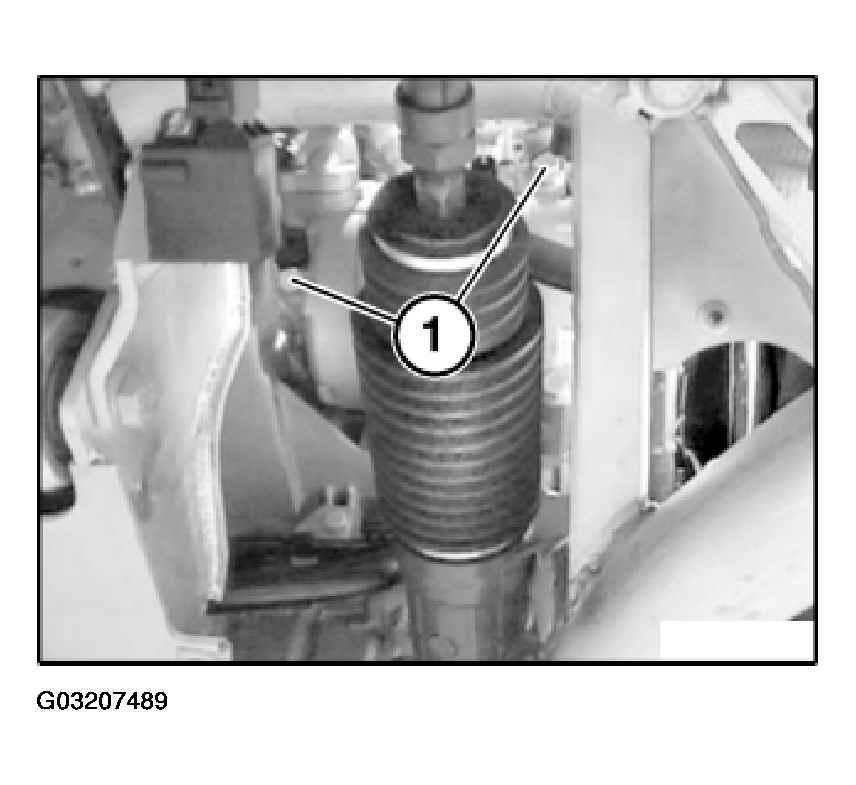

Fig 2: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Tape off front axle support as illustrated with fabric adhesive tape (1).

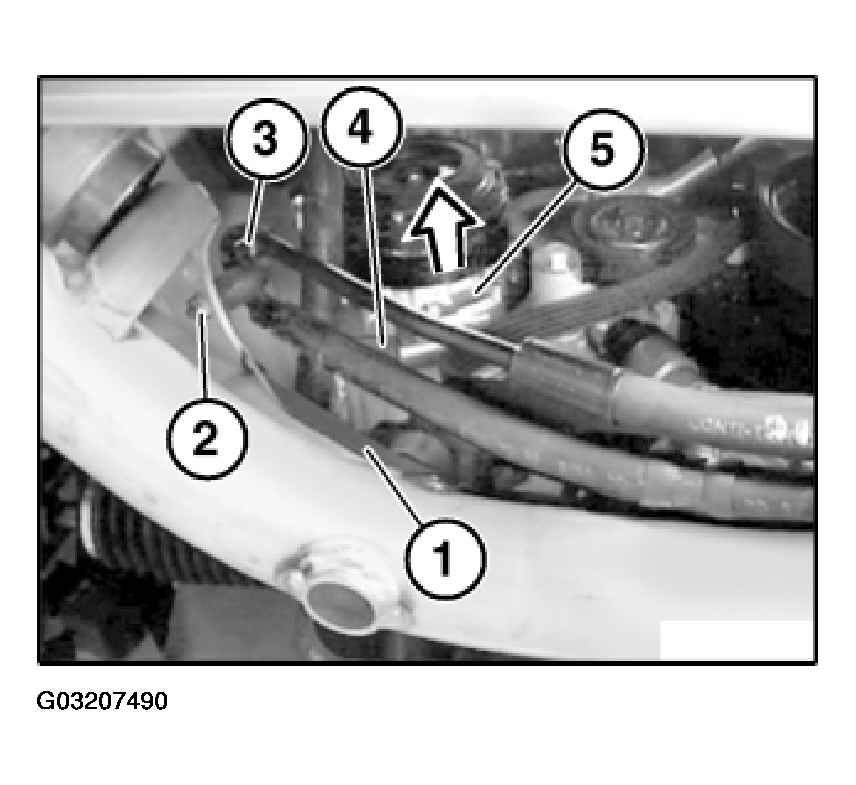

Fig 3: Removing A/C Compressor

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nut (2).

Remove line (3) and lay downwards.

NOTE: Secure A/C compressor (5) against falling out.

Release screw (4) and remove A/C compressor (5) in direction of arrow.
