64 50 ... Removing and installing/replacing pressure fan for condenser

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove top air duct. Refer to 51 71 ... REMOVING AND INSTALLING/REPLACING TOP AIR DUCT .

Unscrew nuts (1).

Loosen screws (2).

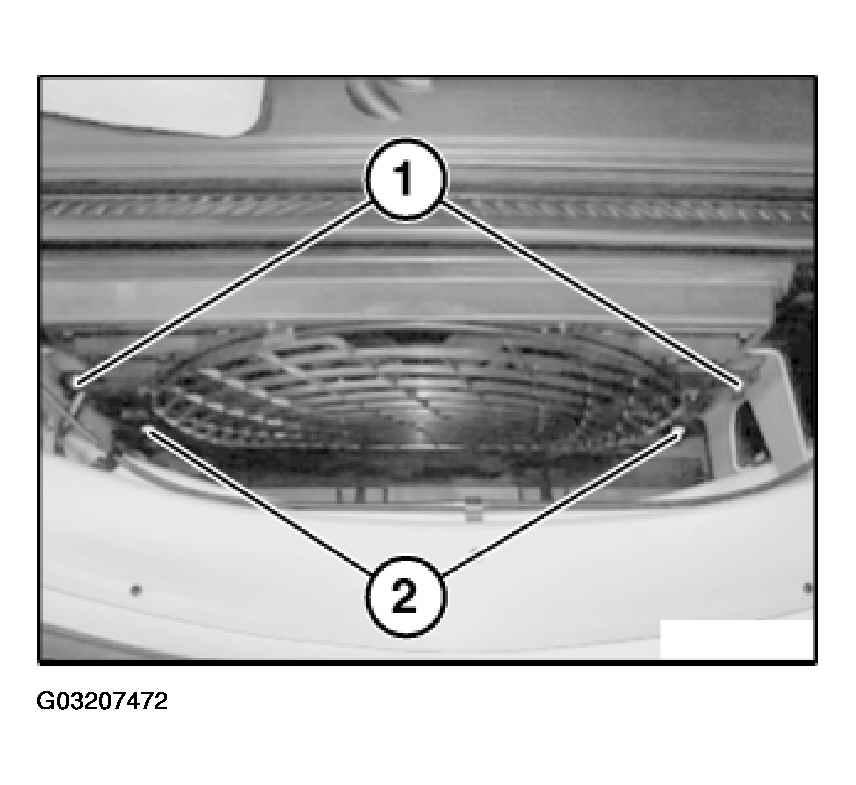

Fig 1: Removing Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug connection (1) and disconnect.

Pull out pressure fan (2) in direction of arrow.

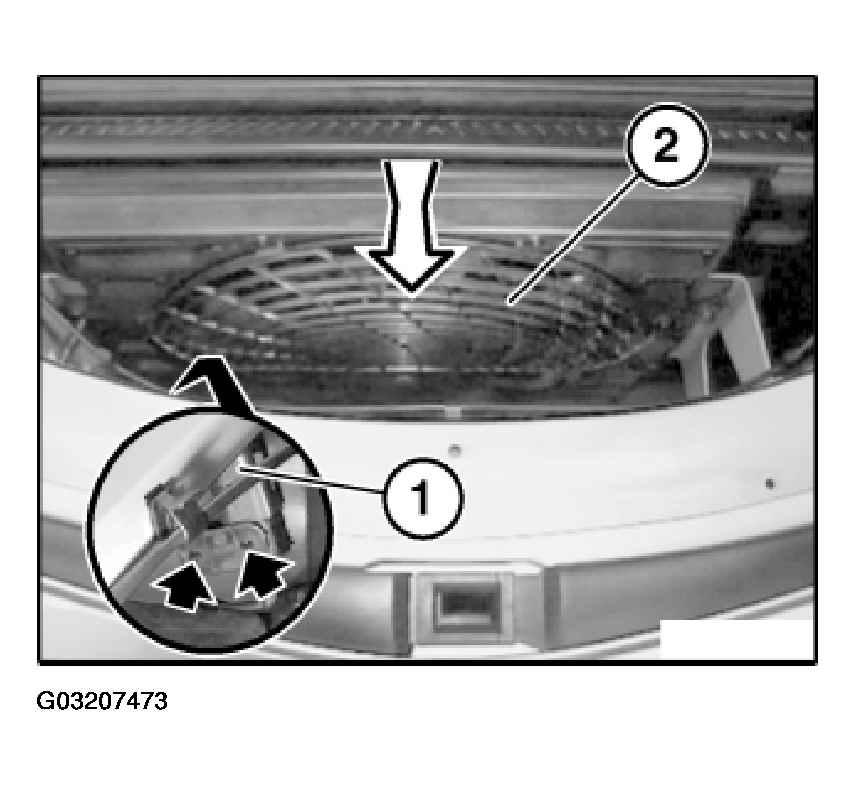

Fig 2: Removing Pressure Fan

Courtesy of BMW OF NORTH AMERICA, INC.
