63 13 200 Removing and installing/replacing front left or right auxiliary turn indicator light
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove front wheel arch cover (rear section).

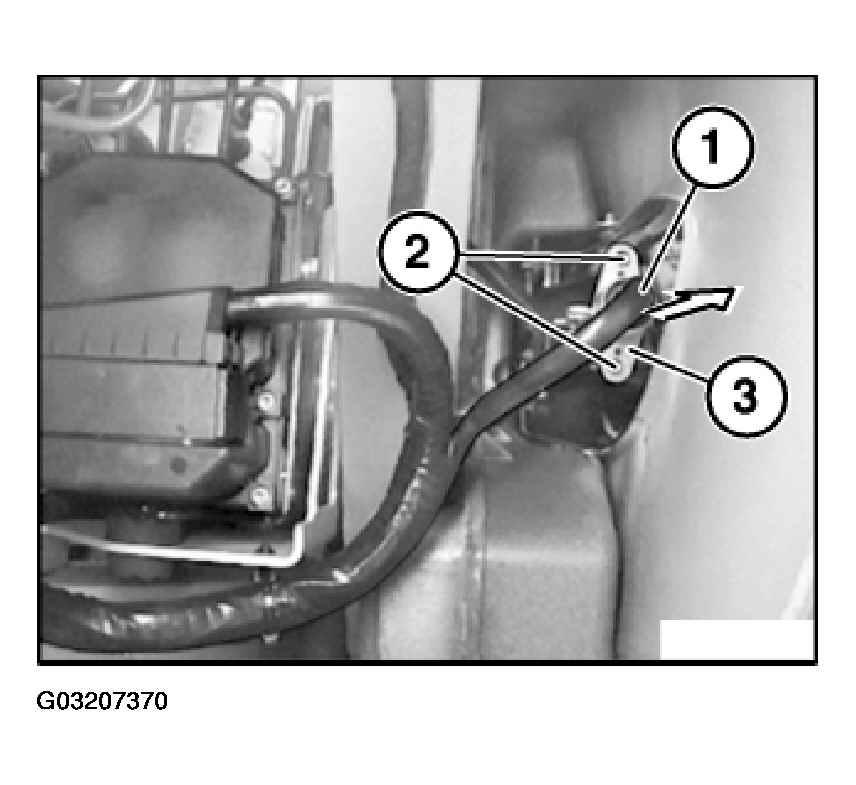

Detach optical waveguide (1) in direction of arrow.
Loosen screws (2).
Pull out auxiliary turn indicator light (3).
Installation:

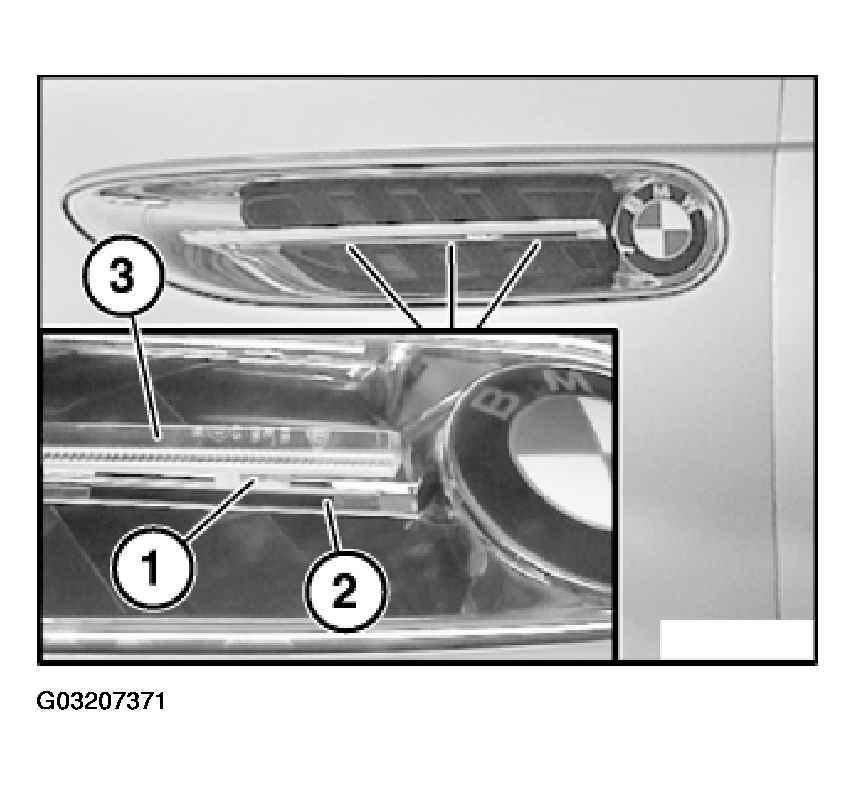

Feed hook (1) into guides (2) of auxiliary turn indicator light (3).
