63 21 ... Sticking on cover for rear light on left or right

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 020

NOTE: Temperature of rear light and cover for rear light must be at least 18°C.
Clean bonding area with spirit and allow to dry (air drying time at least 1 minute).
After this period has elapsed, do not touch the bonding area any more.
Pull off protective film from cover for rear light.
Do not touch bonding area.

Rear light removed:

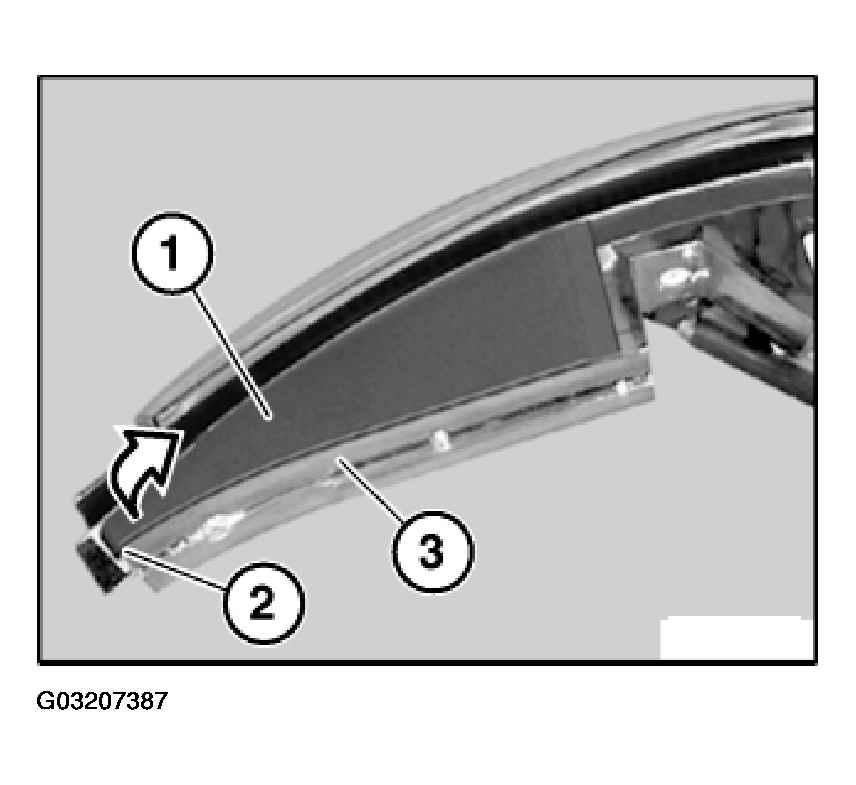

Fit cover for rear light (1) at point (2) on rear light (3) and attach in direction of arrow to rear light (3).

Fig 1: Fitting Cover For Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Press down cover for rear light (1) in small intervals (1-2 cm) all round with firm thumb pressure for approx. 5-10 seconds in each case.

Rear light installed:

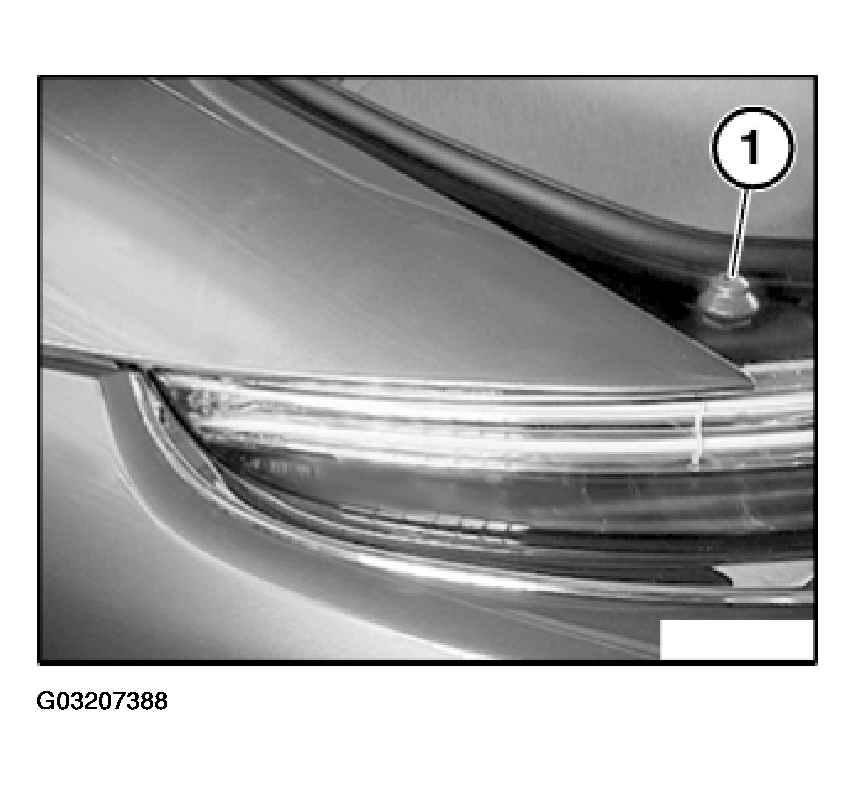

Release stop screw (1).

Fig 2: Locating Stop Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

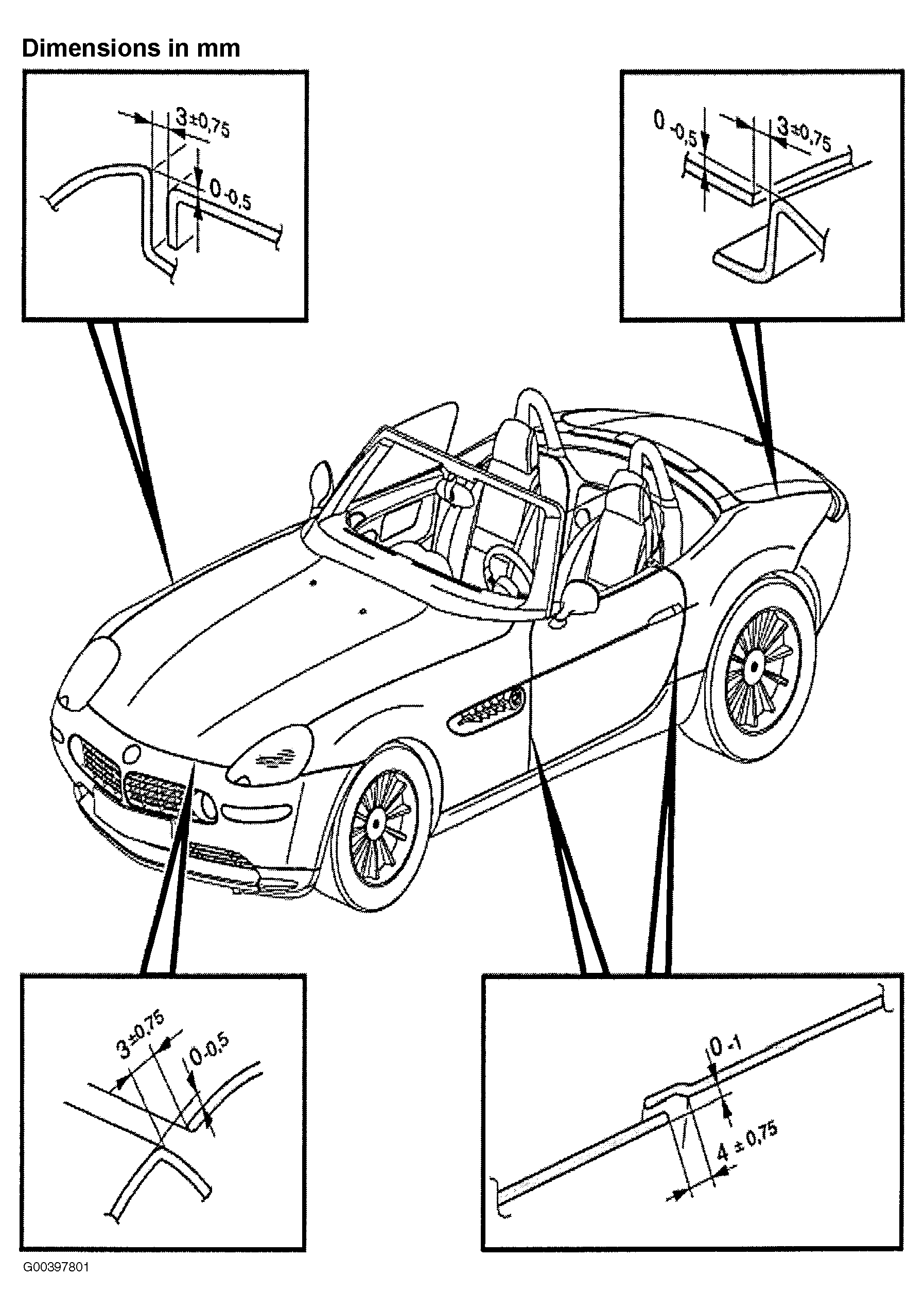

Make sure closed luggage compartment lid is flush with side panel. Refer to Fig 3 .

Fig 3: Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, correct setting by turning stop screw (1).

NOTE: Cover for rear light (2) is fed in under rain channel trim at rear (1).

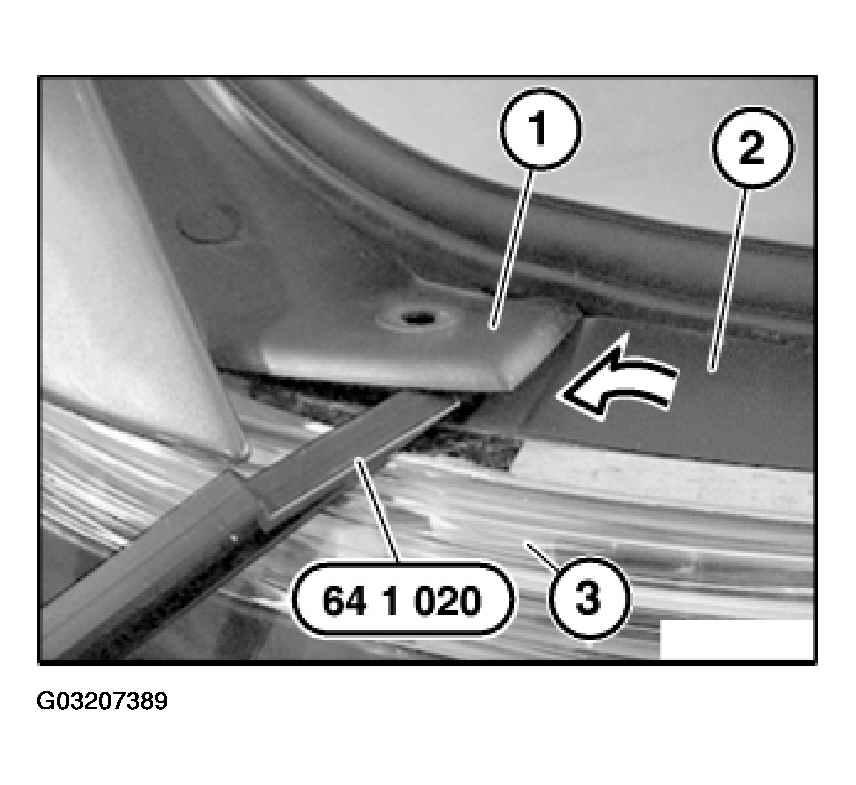

Carefully raise rain channel trim at rear (1) with special tool 64 1 020.

Fig 4: Raising Rain Channel Trim At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clean bonding area under rain channel trim at rear (1).

Fit cover for rear light (2) in direction of arrow flush on rear light (3).

Press down cover for rear light (2) in small intervals (1-2 cm) all round with firm thumb pressure for approx. 5-10 seconds in each case.

All:

NOTE: To guarantee a permanent bond:

A bonding area - once it has been pressed - must not be reused after it is detached again.
Only use washing installations after a period of 24 hours has passed.
