63 99 441 Replacing bulb for engine compartment light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

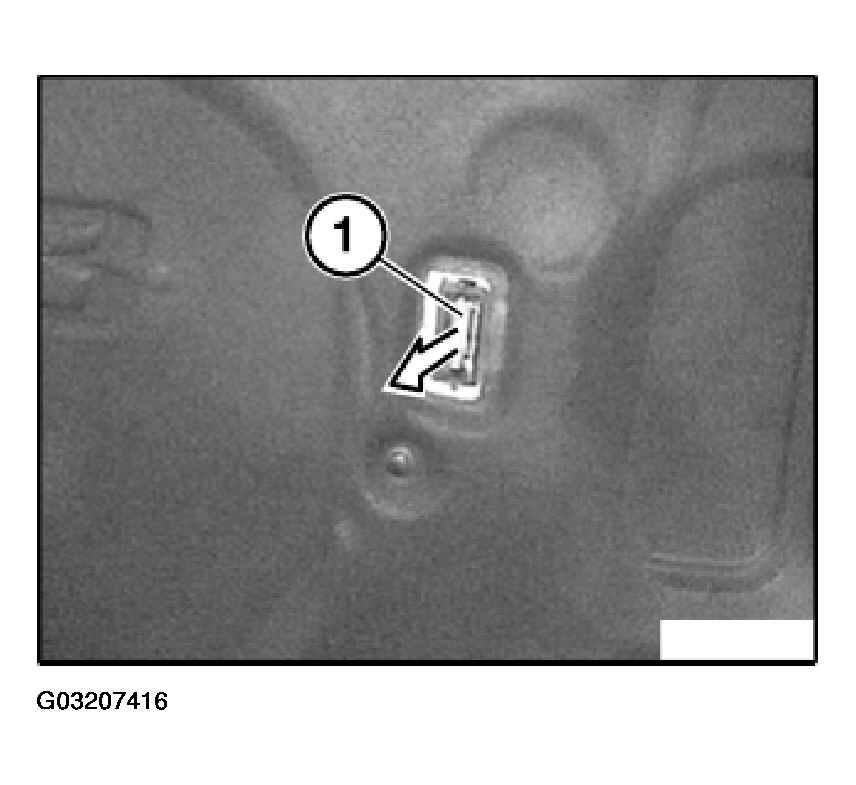

Unlock lens (1) and remove in direction of arrow.

Fig 1: Removing Lens

Courtesy of BMW OF NORTH AMERICA, INC.

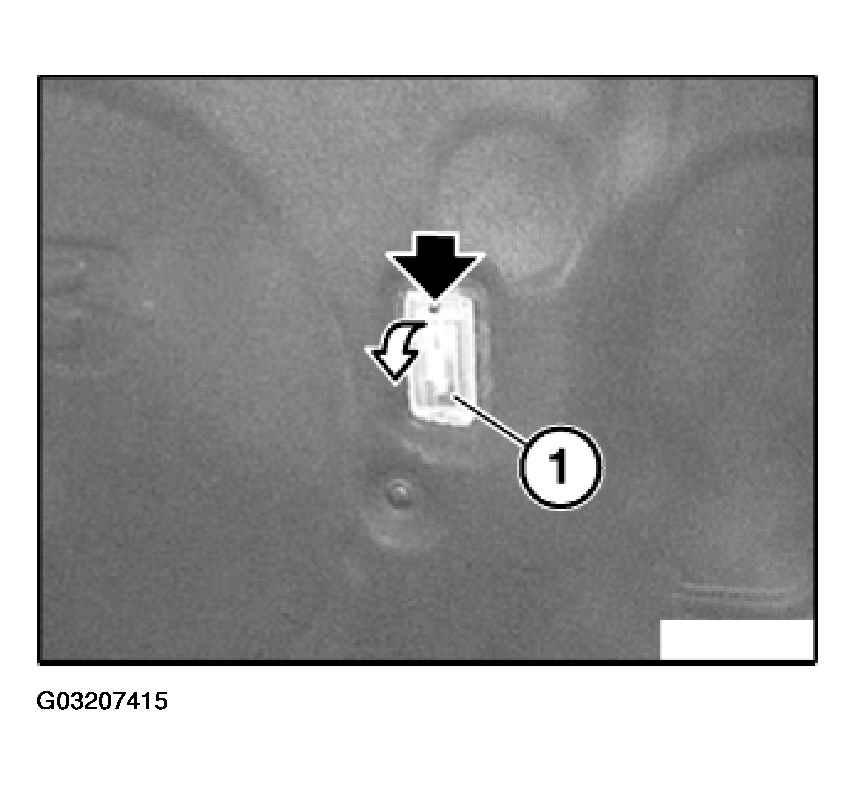

Detach bulb (1) in direction of arrow.

Fig 2: Detaching Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.

Note type of bulb. Refer to LIGHTS - TECHNICAL DATA .
