63 99 076 Replacing left lamp for left xenon light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

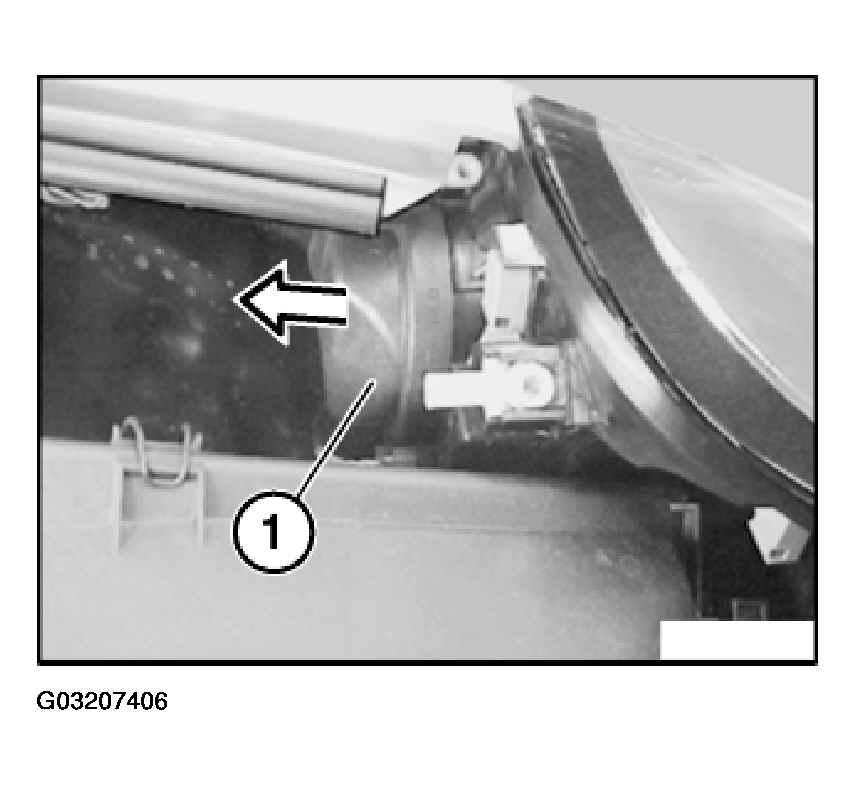

Pull off cap (1) in direction of arrow.

Fig 1: Removing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

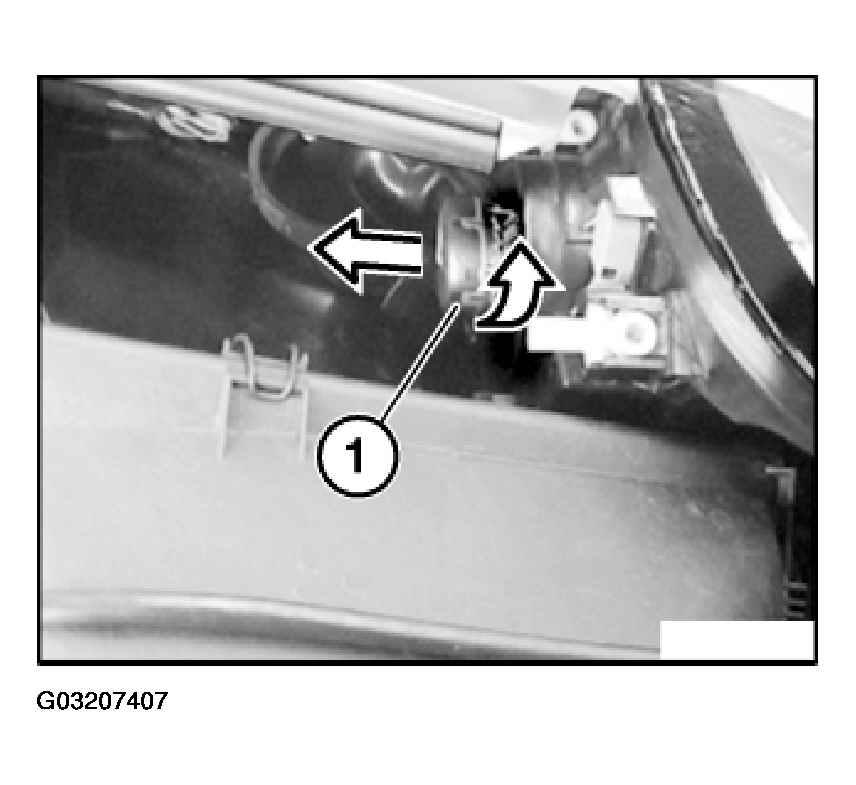

Turn plug connection (1) through approx. 45° in direction of arrow and disconnect.

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

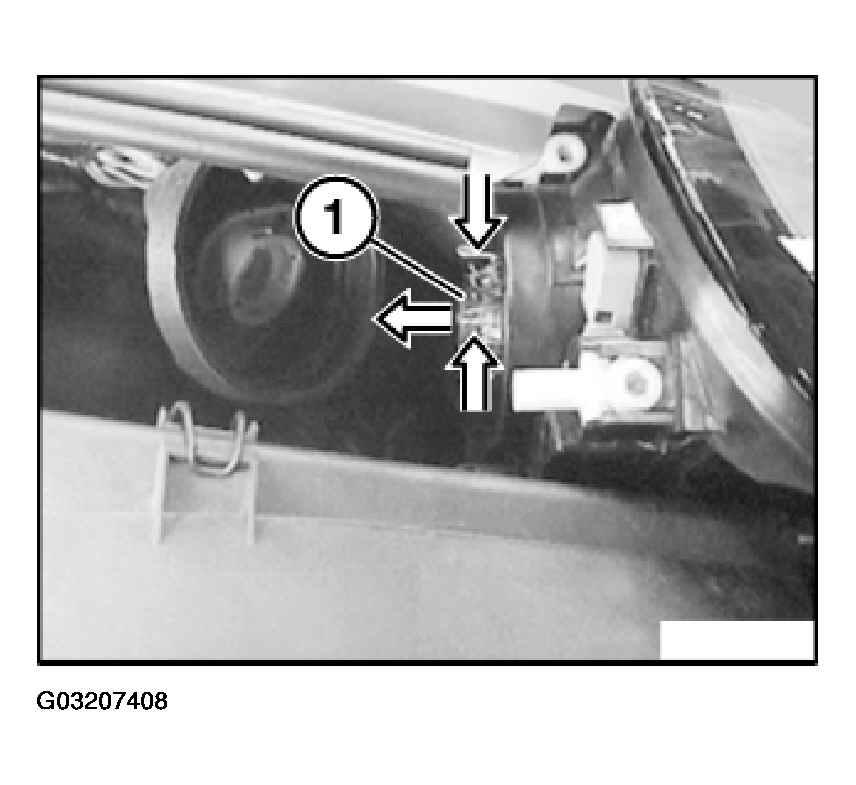

Press retaining clip together in direction of arrow and fold open.

Fig 3: Removing Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out bulb for xenon light (1).

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA .
