63 31 040 Removing and installing/replacing complete engine compartment light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lever out engine compartment light (1) with special tool 00 9 317 in direction of arrow.

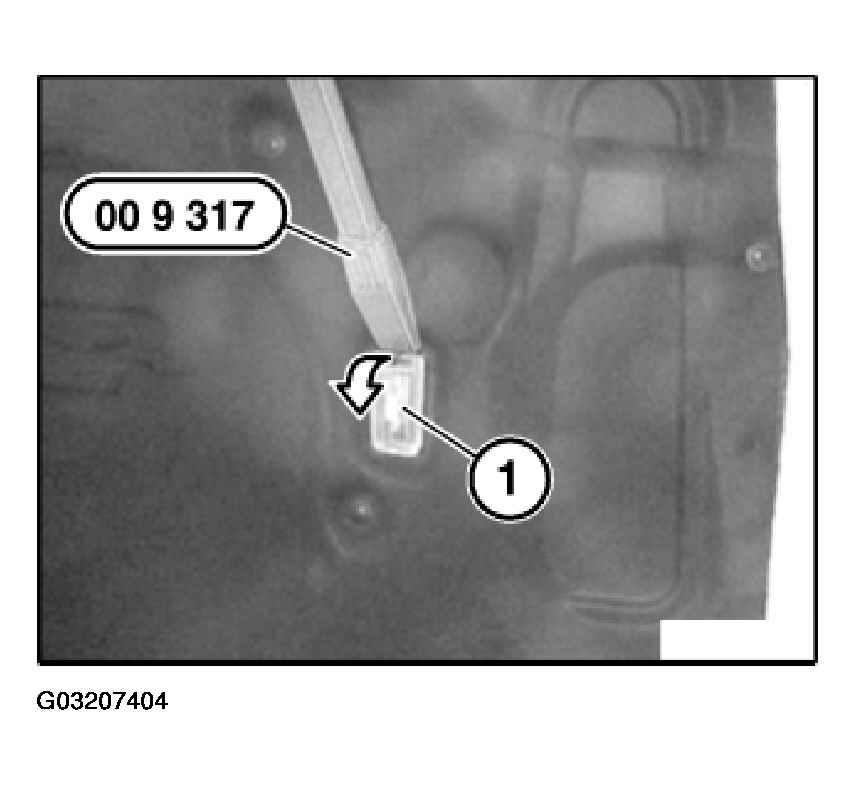

Fig 1: Removing Engine Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection and remove engine compartment light (1).
