63 31 015 Removing and installing/replacing left or right interior light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

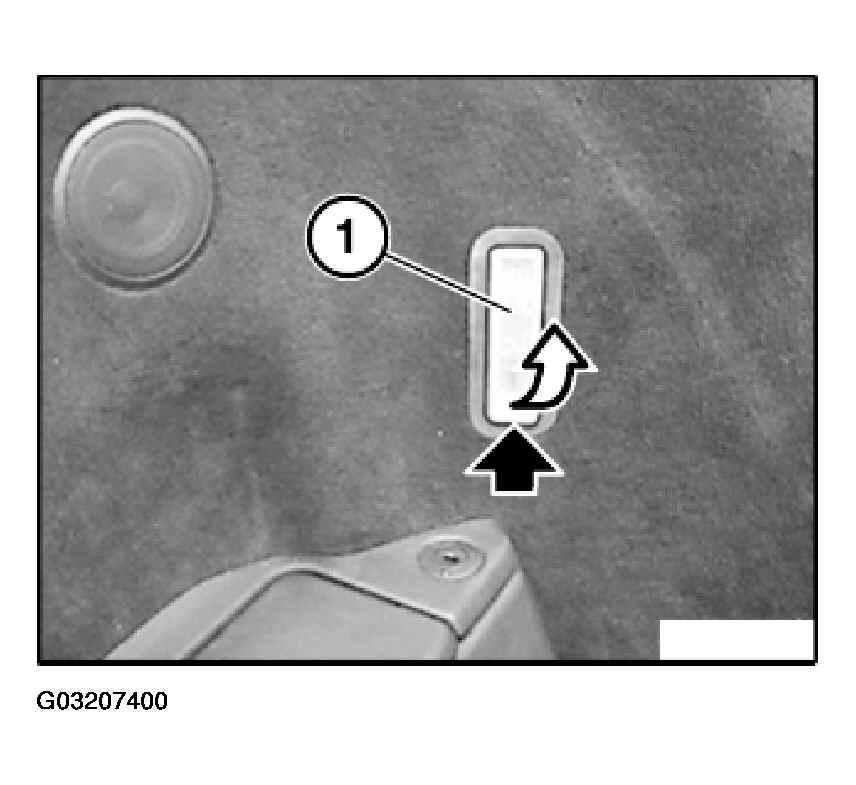

Lever out lens cover (1) on opening in direction of arrow.

Fig 1: Removing Lens Cover

Courtesy of BMW OF NORTH AMERICA, INC.

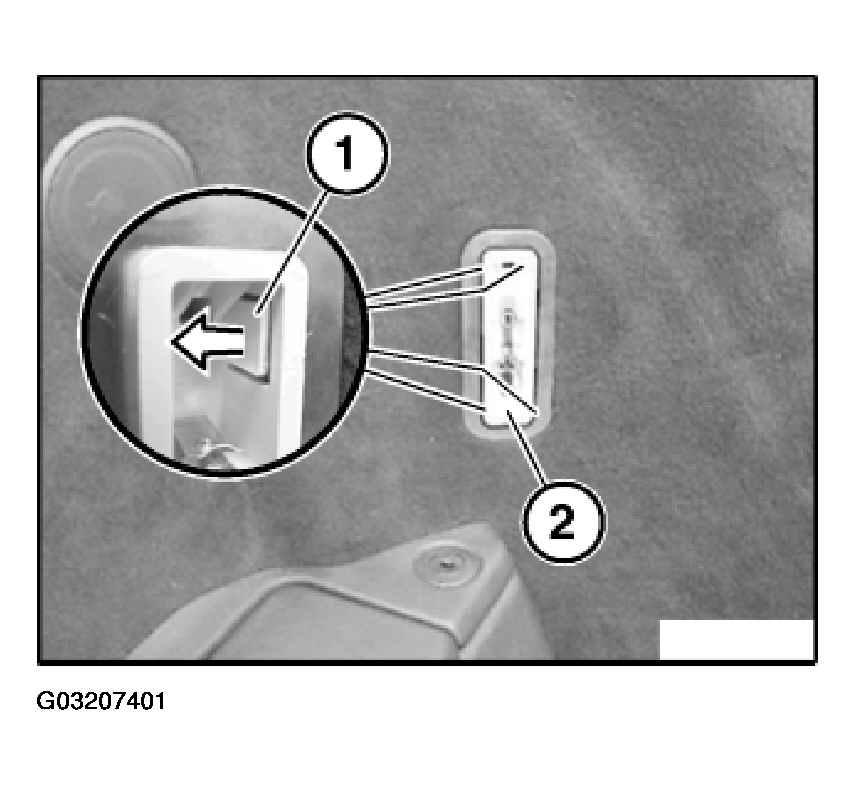

Lever out lugs (1) in direction of arrow and pull out inside light (2).

Fig 2: Removing Inside Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection and remove inside light (2).
