63 14 051 Replacing reflector with bulb for right auxiliary turn indicator light
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim for speaker on right. Refer to 51 45 135 REMOVING AND INSTALLING/REPLACING SPEAKER COVER ON RIGHT .

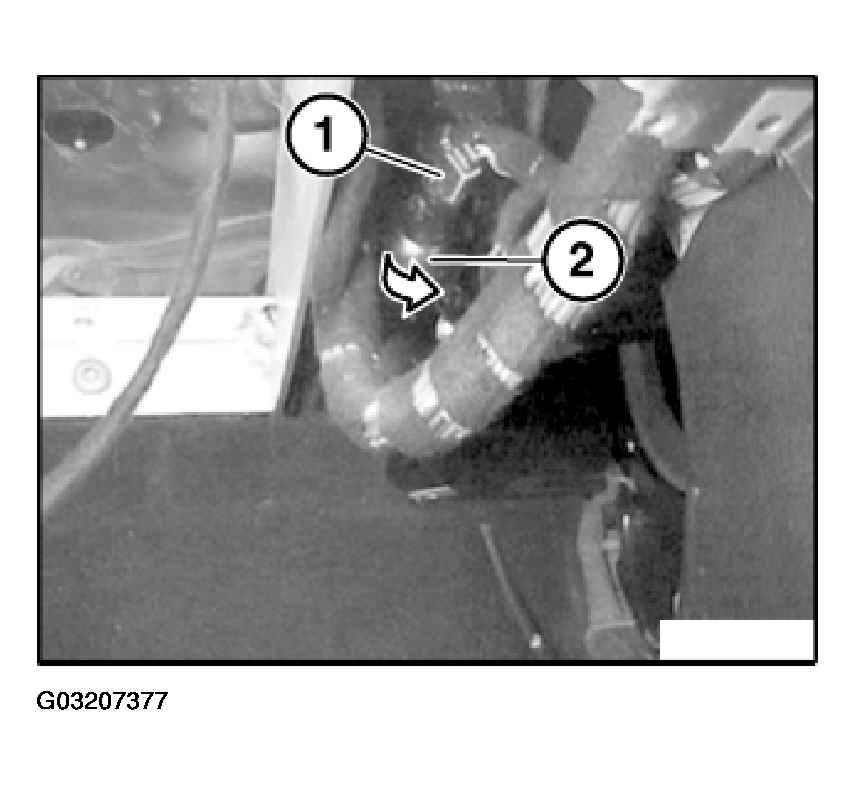

Disconnect plug connection (1).
Turn reflector with lamp (2) through approx. 45° in direction of arrow and pull out.
NOTE:
Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA .
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA .
