63 14 050 Replacing reflector with bulb for left auxiliary turn indicator light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR PEDAL ASSEMBLY .

Disconnect plug connection (1).

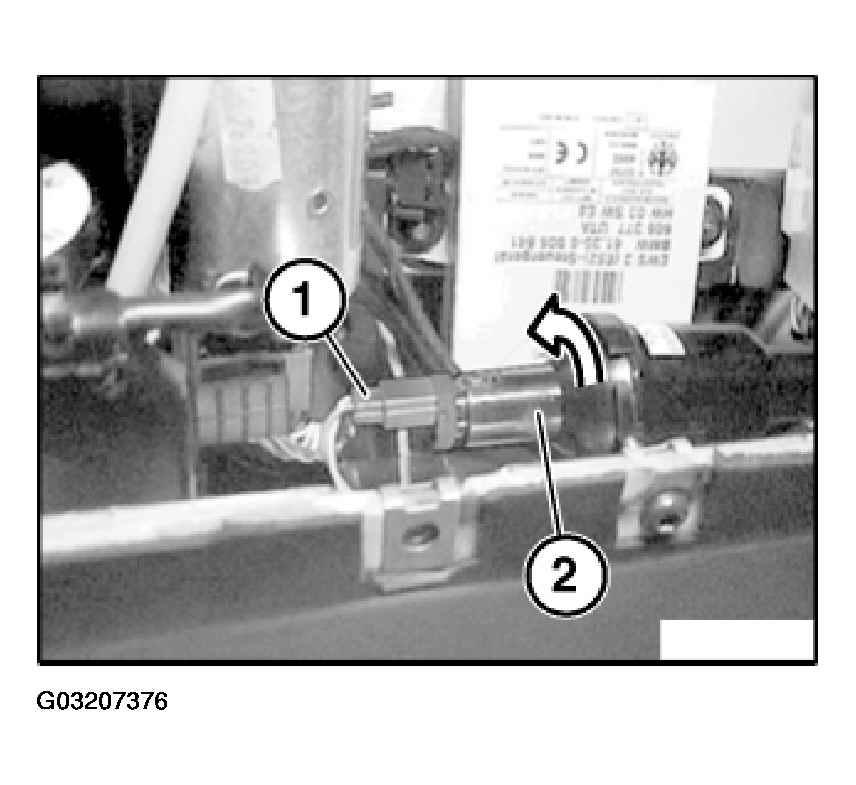

Fig 1: Removing Reflector With Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Turn reflector with lamp (2) through approx. 45° in direction of arrow and pull out.

NOTE: Do not touch glass part of bulb with bare fingers. Only touch bulb on its base or with a clean cloth or packaging of light bulb.
Note type of bulb. Refer to LIGHTS - TECHNICAL DATA .
