63 25 000 Removing and installing/replacing additional stop light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

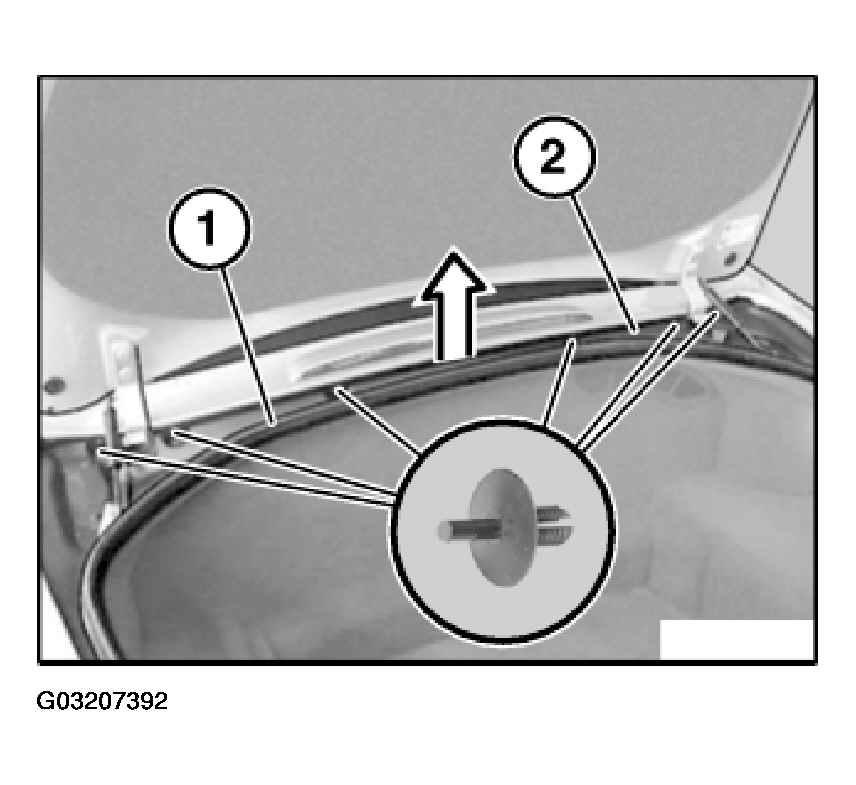

Pull off seal (1) in area of trim of rain gutter at rear center (2).

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove expansion rivets.

Remove trim of rain gutter at rear center (2) in direction of arrow.

Unclip cable.

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

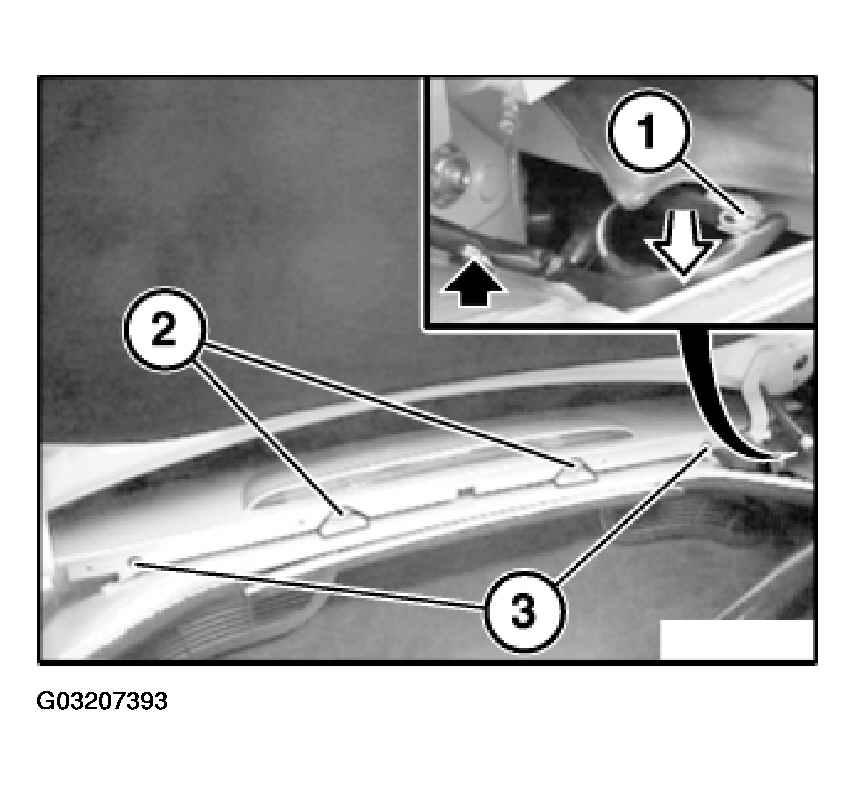

Detach plug connection (1) in direction of arrow and disconnect.

Release screws (2) and (3).

Installation:

Note different screw lengths.

Screws (2) = long
Screws (3) = short

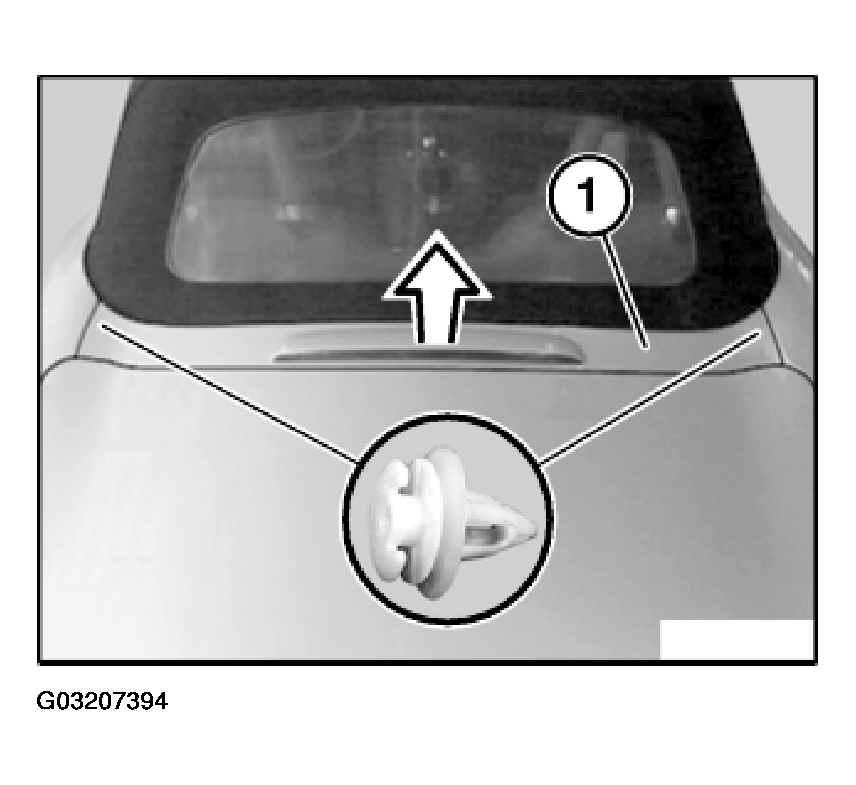

Unclip rear window frame (1) on left and right and remove in direction of arrow.

Fig 3: Removing Rear Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips.

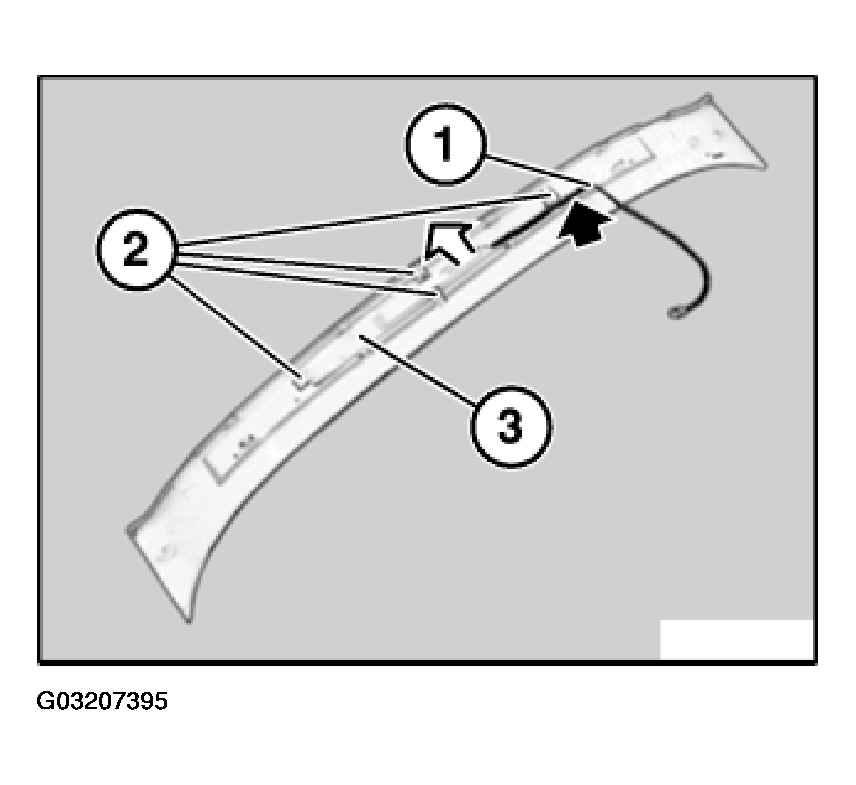

Unclip cable (1).

Fig 4: Removing Additional Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Remove additional brake light (3) in direction of arrow.
