62 11 100 Removing and installing/replacing speedometer
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove entire instrument cluster. Refer to 62 21 000 Removing and installing entire instrument cluster .
NOTE:
The procedure for removal and installation/replacement is the same for all instruments in the instrument cluster.

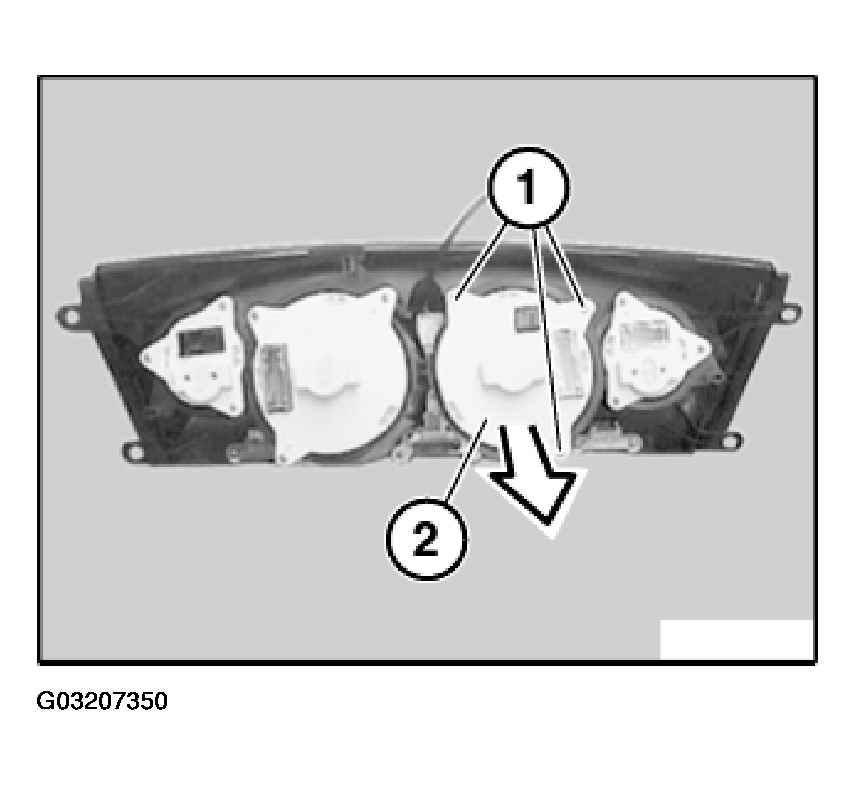

Loosen screws (1).
Pull out speedometer (2) in direction of arrow.
