Supporting transmission

WARNING: This page is about a different car, the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

Support transmission with special tools 23-4050 FIXTURE and 00-2030 DEVICE .

Secure transmission to mounting with tensioning strap (1).

Tasks are described in TRANSMISSION BRACKET .

After completion of work, check transmission oil level. See GEAR OIL LEVEL .

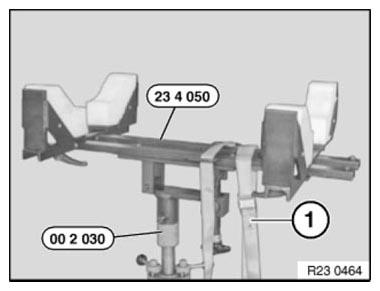

Fig 1: Supporting Transmission Using Special Tools (23 4 050)

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) and nuts (2) and remove cross-member.

Tightening torque 23 71 2AZ .

Fig 2: Identifying Cross-Member Bolts And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove complete propeller shaft. See 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT (CONSTANT-VELOCITY JOINT) .

NOTE: Pressure line of clutch slave cylinder remains connected.

IMPORTANT: Relieve tension on clutch slave cylinder slowly; otherwise air will be drawn in through sealing sleeve.

Release nuts and remove clutch slave cylinder.

Tightening torque, see "5AZ" under 21 52 CLUTCH OPERATION (HYDRAULIC) .

Fig 3: Locating Clutch Slave Cylinder Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off retainer (1).

Clamp off shift rod (2).

Installation:

Grease shift rod.

Grease, refer to CLUTCH COMPONENT GREASE .

Make sure shims (3) are in correct position.

Fig 4: Disconnecting Shift Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock bearing pin (1) in direction of arrow and remove.

Lift out shift arm.

Installation:

Grease bearing pins (1).

Grease, refer to GEAR SHIFT MECHANISM - OPERATING FLUIDS .

Fig 5: Removing Bearing Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (1) of zero-gear sensor (ON TRANSMISSION) and disconnect.

Fig 6: Identifying Zero-Gear Sensor Lock Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release remaining eight bolts (1/2).

IMPORTANT: Bolts (2) are longer than bolts (1)

Tightening torque 23 00 1AZ .

NOTE: Bolt (3) must not be released.
Bolt (3) serves to secure the starter motor.

Fig 7: Identifying Starter Motor Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not suspend the transmission from the transmission input shaft during removal and installation as this will deform the clutch plate. Pull out transmission towards rear and remove.

Installation:

Check that fitting sleeves (1) are correctly seated.

Replace damaged fitting sleeves.

NOTE: When removing and installing the transmission, without fail use transmission bracket 23-4050 FIXTURE and a jack to support the engine.
Failure to comply with this instruction may result in preliminary damage to the clutch and splined shaft.

Fig 8: Identifying Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check lubrication of transmission input shaft for sticky consistency. If grease is sticky, clean input shaft and replace clutch plate. See 21 21 500 REMOVING AND INSTALLING/REPLACING CLUTCH (GS6-53BZ) S85 USA ONLY .

Check clutch plate for friction rust in splines and replace if necessary. See 21 21 500 REMOVING AND INSTALLING/REPLACING CLUTCH (GS6-53BZ) S85 USA ONLY .

Remove any grease and lining abrasion from splines of clutch plate by mechanical means (with a cloth).

Fig 9: Locating Transmission Input Shaft Lubrication

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Greasing specification:

Remove and clean release bearing and release lever. See 21 51 500 REMOVING AND INSTALLING OR REPLACING CLUTCH RELEASE BEARING/LEVER .
Push on grease scraper ring as far as it will go. Use 21-2240 RING .
Grease splines (1) of input shaft with a brush. See CLUTCH COMPONENT GREASE .
Detach grease scraper ring.

Fig 10: Locating Grease Scraper Ring And Splines
