61 61 250 Replacing windshield wiper motor

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative lead. Refer to 12 00 ... Instructions for disconnecting and connecting battery .
Remove complete mounting bracket for windshield wiper system (with motor). Refer to 61 61 270 Removing and installing complete mounting bracket for windshield wiper system (with motor) .

CAUTION: Connect vehicle wiring harness after mounting new windshield wiper motor to mounting bracket for windshield wiper system.

Then run windshield wiper motor into rest position.

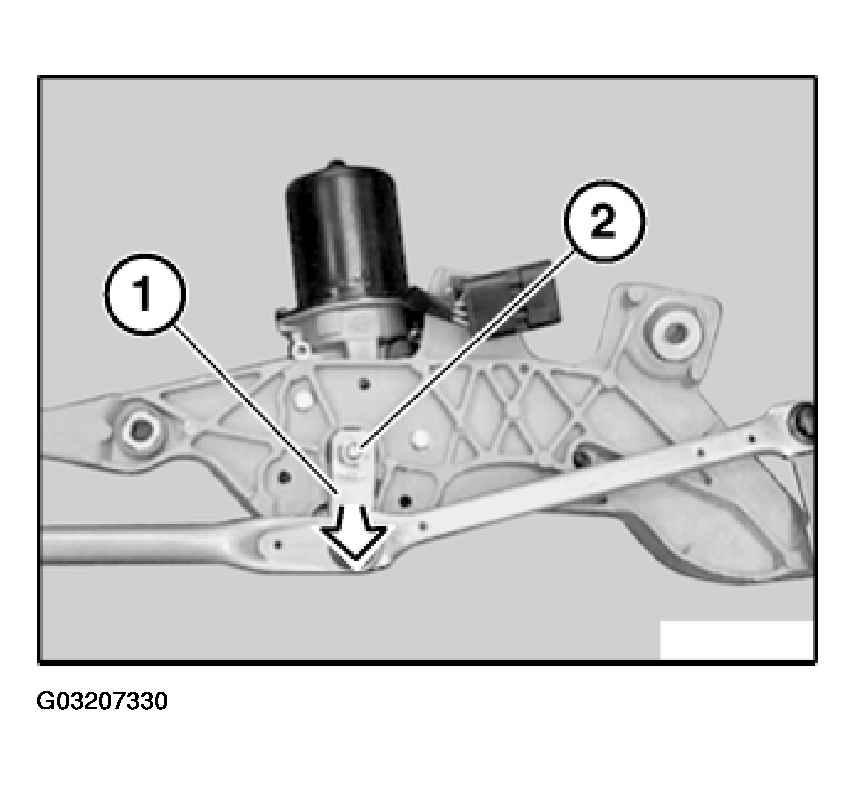

Secure motor crank (1) against rotating and release nut (2).

Fig 1: Levering Off Motor Crank

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 61 61 4AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Lever off motor crank (1) in direction of arrow.

Installation:

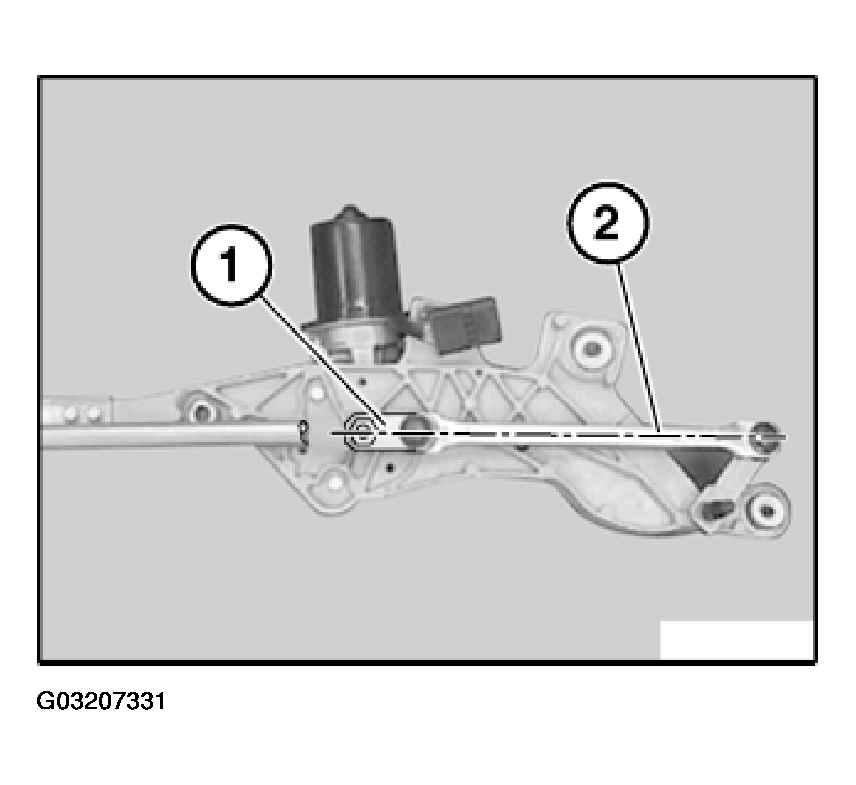

Position motor crank (1) on shaft in such a way that it forms a line with drive rod (2) on passenger side.

Fig 2: Positioning Motor Crank On Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

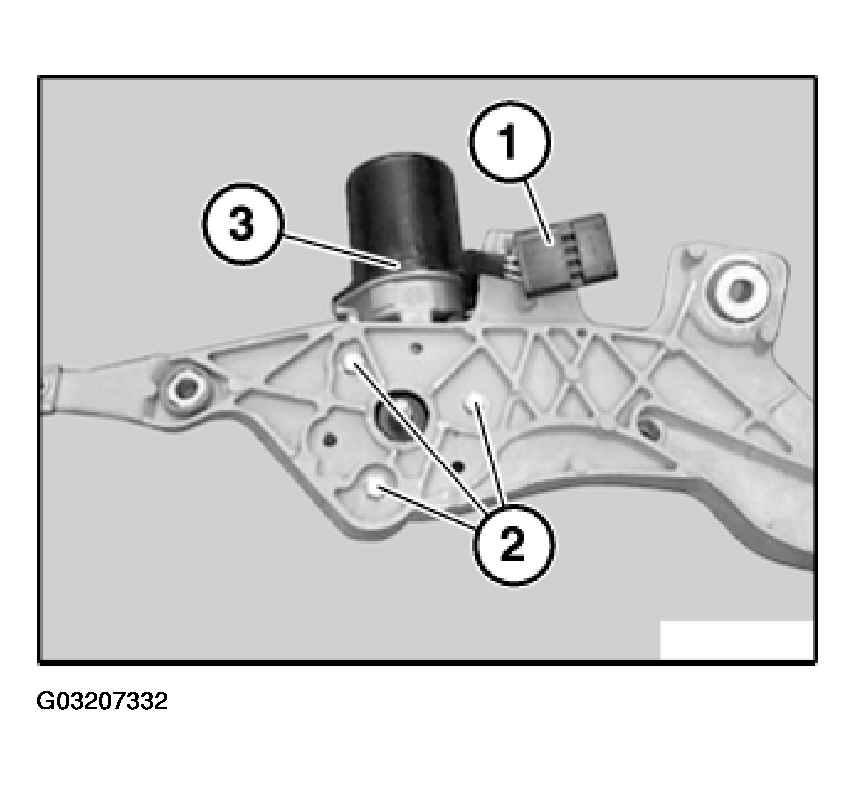

Turn plug connection (1) and unclip.

Loosen screws (2).

Tightening torque, 61 61 1AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove windshield wiper motor (3) from mounting bracket for windshield wiper system.

Fig 3: Removing Windshield Wiper Motor

Courtesy of BMW OF NORTH AMERICA, INC.
