61 31 295 Replacing clutch switch for cruise control system
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Press clutch pedal with pedal support down to flow and lock in position.

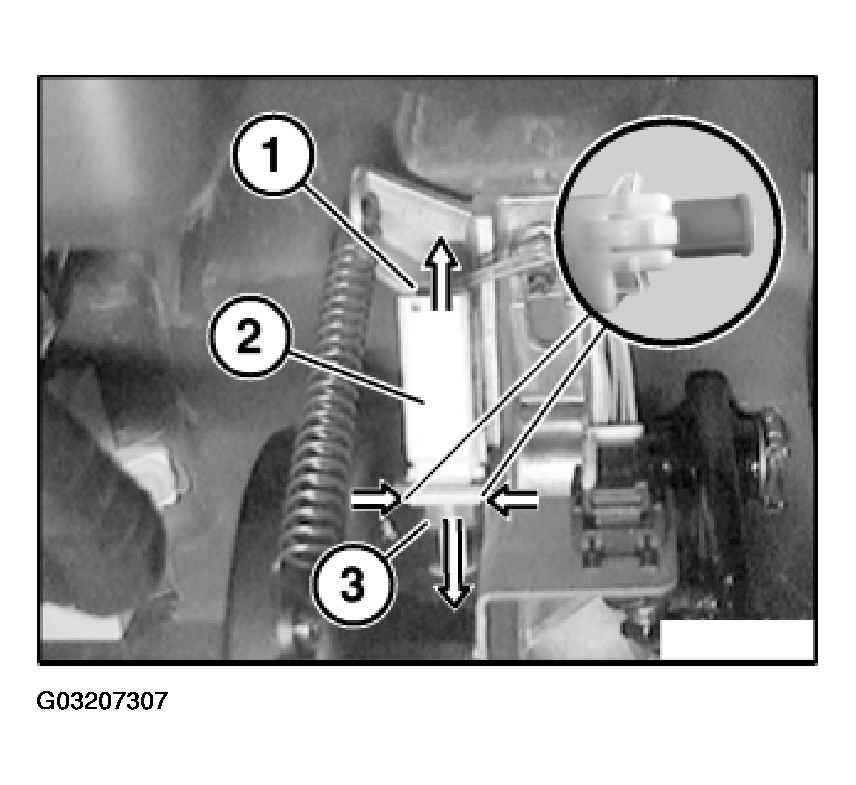

Disconnect plug connection (1).
Withdraw sleeve (3) in direction of arrow up to stop.
Press both retaining clips together at front end and pull out switch (2) in direction of arrow towards rear.
Installation:
Slowly move clutch pedal to initial position.
