61 31 292 Replacing clutch switch for starter interlock

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install panel for speaker on left. Refer to 51 45 130 REMOVING AND INSTALLING/REPLACING SPEAKER COVER ON LEFT .

Withdraw sleeve (1) in direction of arrow up to stop.

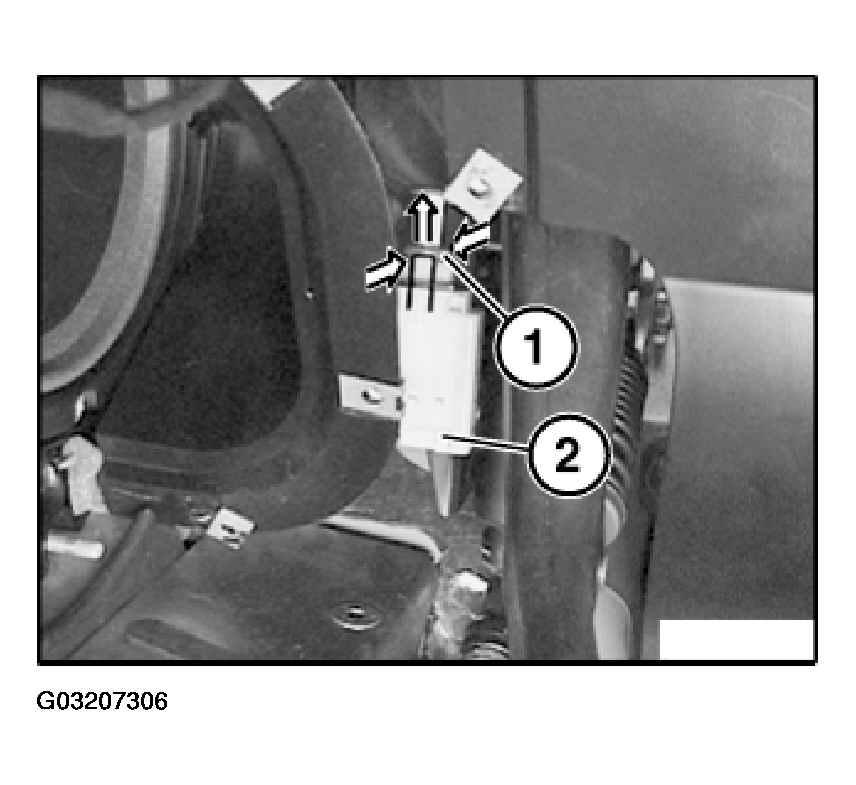

Fig 1: Pulling Switch Out Of Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Press both retaining clips together at front end and pull switch (2) out of mounting.

Disconnect plug connection.

Installation:

Push in sleeve (1) against direction of arrow up to stop.
