61 31 241 Removing and installing/replacing engine hood contact switch

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect plug connection (1).

Lever out hood contact switch (2) in direction of arrow and pull out towards top.

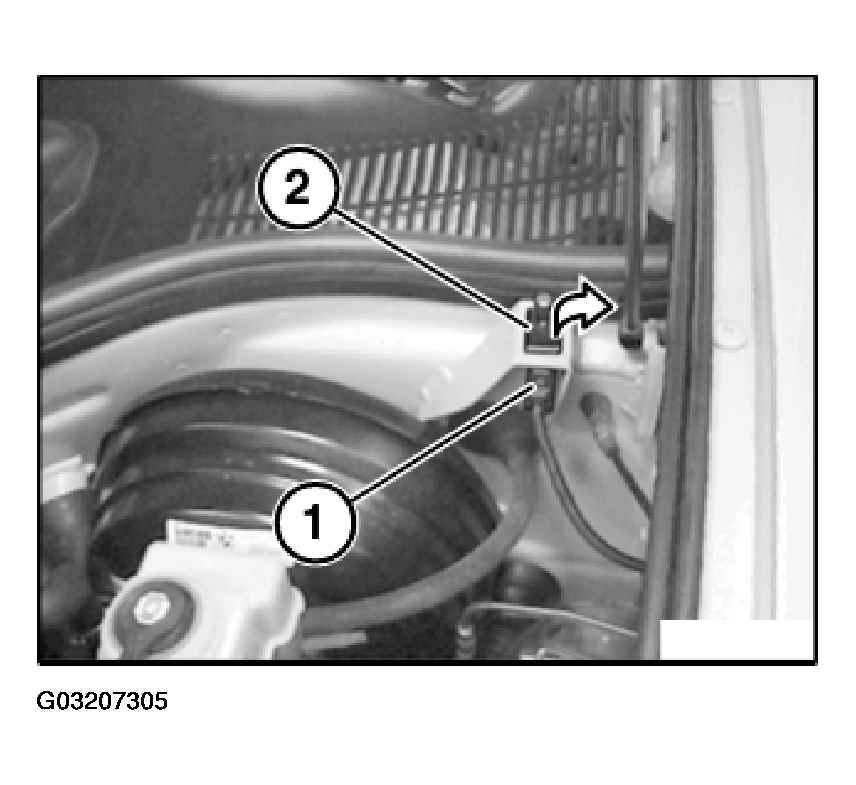

Fig 1: Levering Out Hood Contact Switch

Courtesy of BMW OF NORTH AMERICA, INC.
