61 31 071 Removing and installing/replacing switch for rear fog light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel. Refer to 61 31 028 Removing and installing/replacing light switch  .

Installation:

Pay attention to installation position of switch for rear fog light (1).

Press out switch for rear fog light (1) from inside to outside.

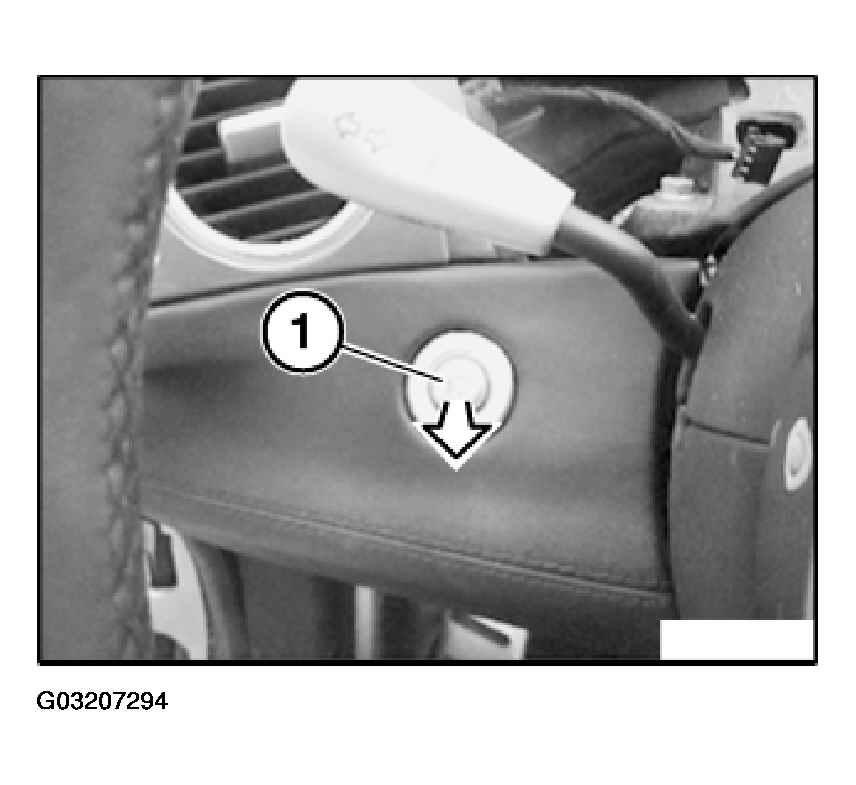

Fig 1: Pressing Out Switch For Rear Fog Light
G03207294Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.
