61 31 040 Removing and installing/replacing stalk for windshield wipers

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper section of steering column trim. Refer to STEERING COLUMN TRIM (UPPER SECTION) .

NOTE: For purposes of clarity, illustration does not dust guard cover.

Disconnect plug connection (1).

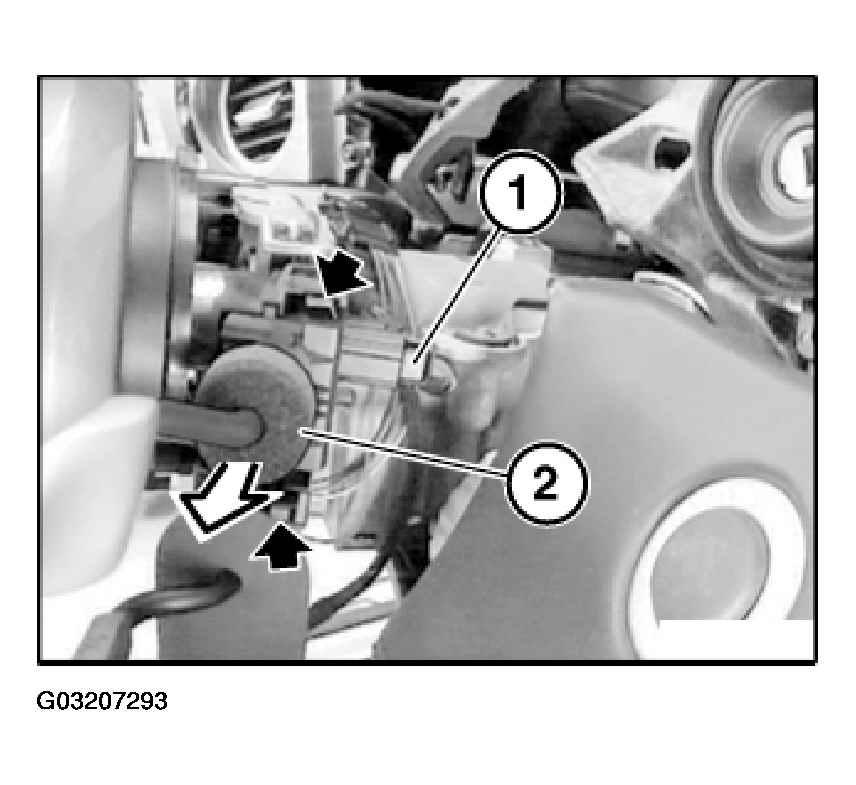

Fig 1: Removing Windshield Wiper Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock windshield wiper switch (2) and remove in direction of arrow.

Installation:

Allow windshield wiper switch (2) to snap audibly into place.
