61 31 022 Removing and installing steering lock/ignition starter switch

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative lead from body and cover. Refer to 12 00 ... Instructions for disconnecting and connecting battery .

Remove air duct for footwell on left. Refer to 64 11 825 REPLACING SERVODRIVE OF RECIRCULATED AIR FLAPS .

NOTE: Secure steering lock/ignition starter switch (4) against falling out.

Unlock plug connection (1) and disconnect.

Disconnect plug connection (2).

Release screws (3).

Remove steering lock/ignition starter switch (4).

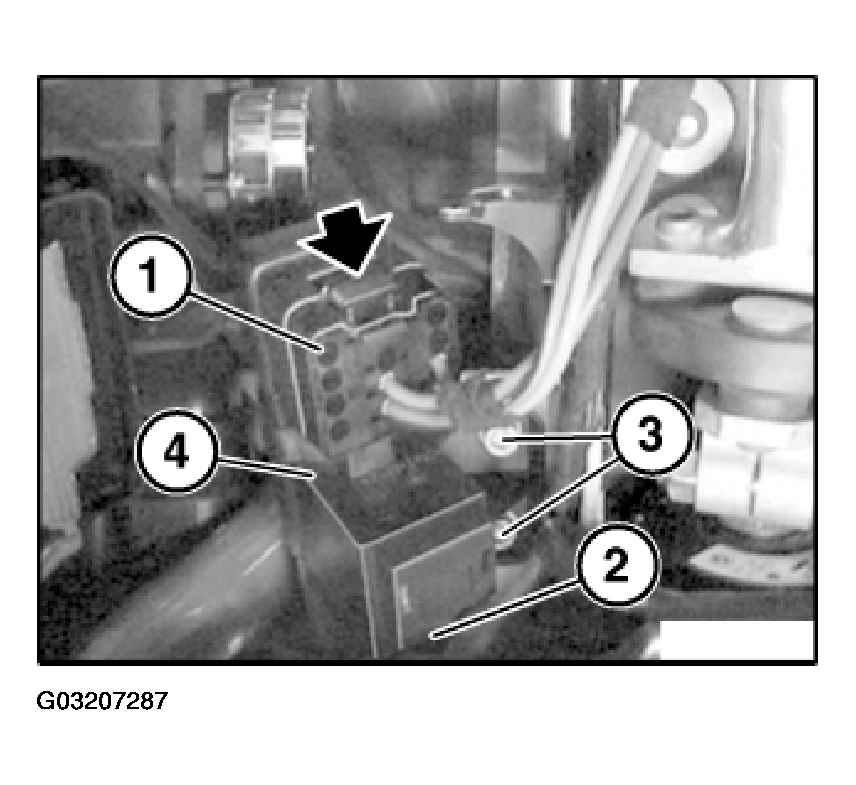

Fig 1: Removing Steering Lock/Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed pin (1) into hole for steering lock/ignition starter switch (2).

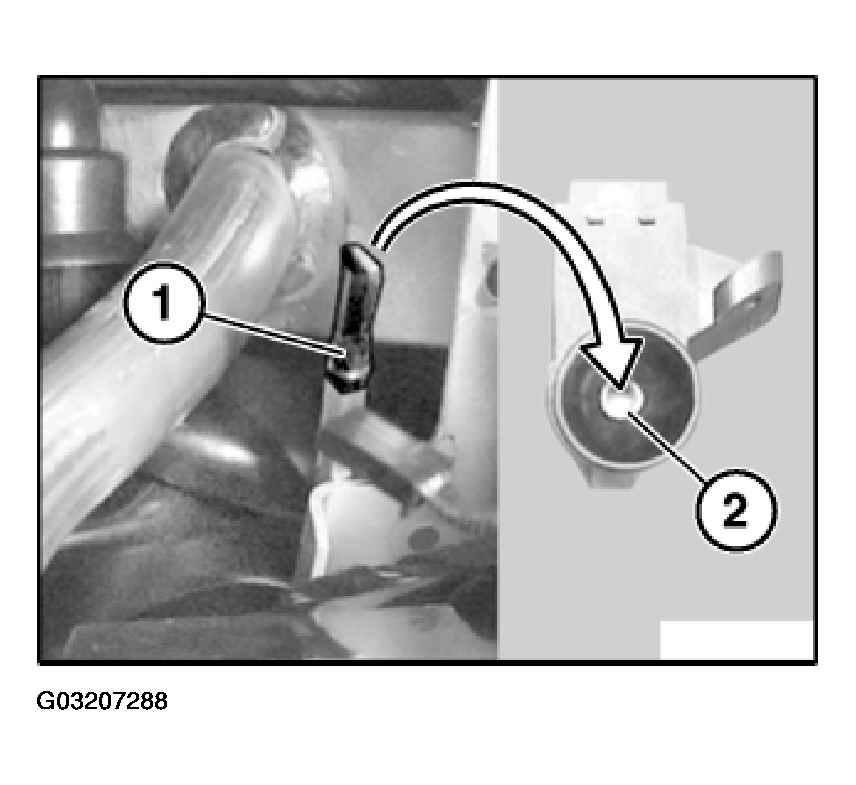

Fig 2: Feeding Pin Into Hole For Steering Lock/Ignition Starter Switch

Courtesy of BMW OF NORTH AMERICA, INC.
