61 31 018 Removing and installing/replacing cruise control switch

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper section of steering column trim. Refer to STEERING COLUMN TRIM (UPPER SECTION) .

NOTE: For purposes of clarity, illustration does not show dust guard cover.

Disconnect plug connection (1).

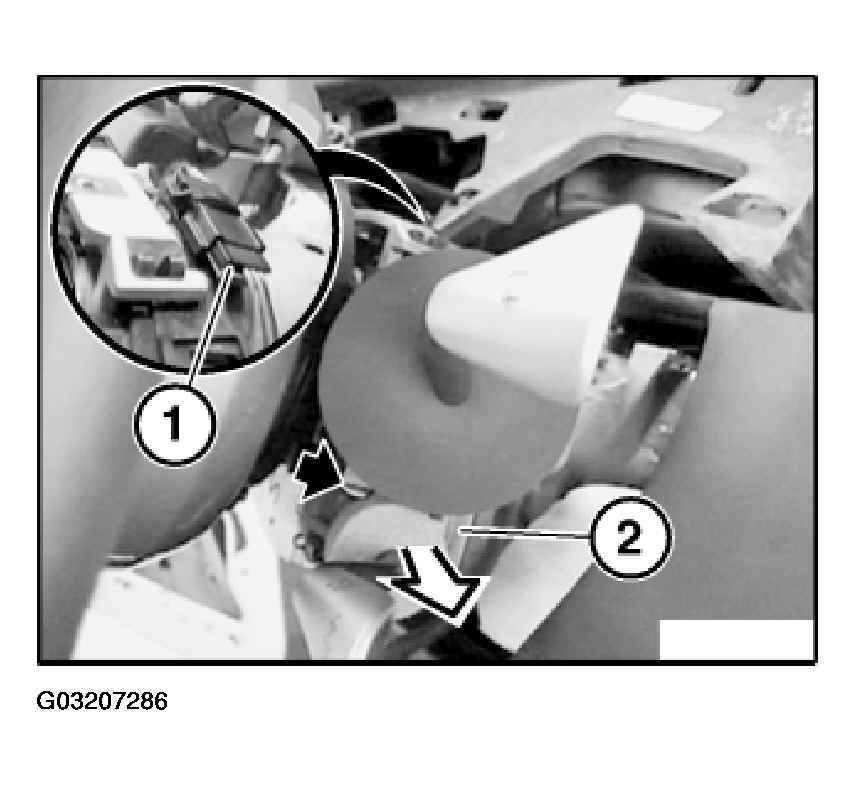

Fig 1: Removing Cruise Control Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock cruise control switch (2) and remove in direction of arrow.

Installation:

Allow cruise control switch (2) to snap audibly into place.
