52 16 ... Removing and installing/replacing gearing for longitudinal seat adjustment on left and right on front seat

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat. Refer to 52 16 000 Removing and installing left or right front seat .

Detach flex shaft (1) on left and right first from gearing (2) and then from servomotor (3).

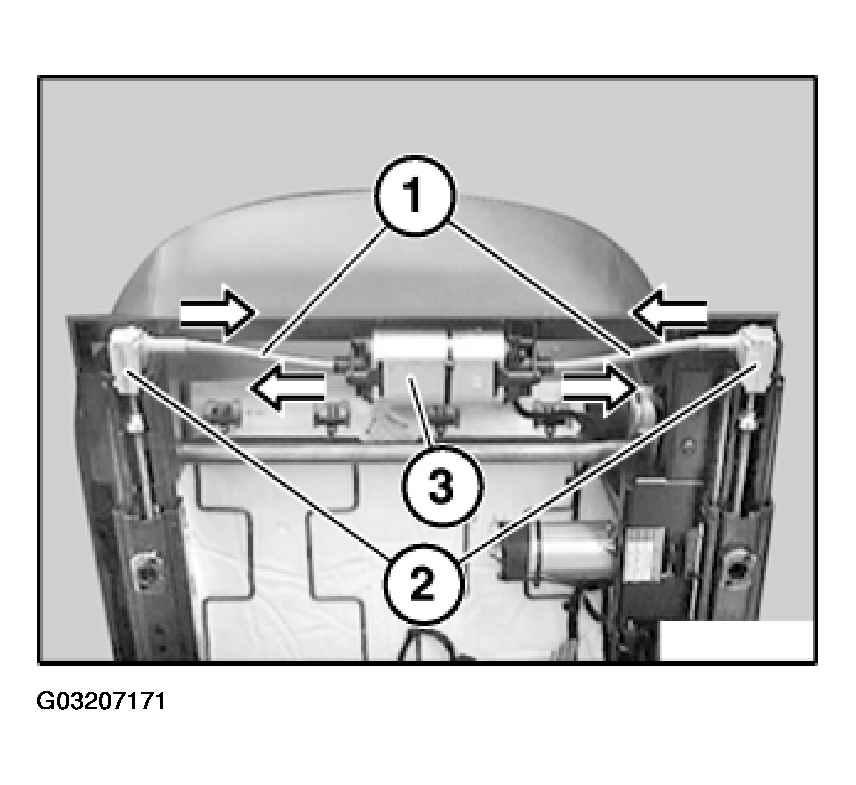

Fig 1: Detaching Flex Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Drive out split pin (1).

Fig 2: Removing Split Pin

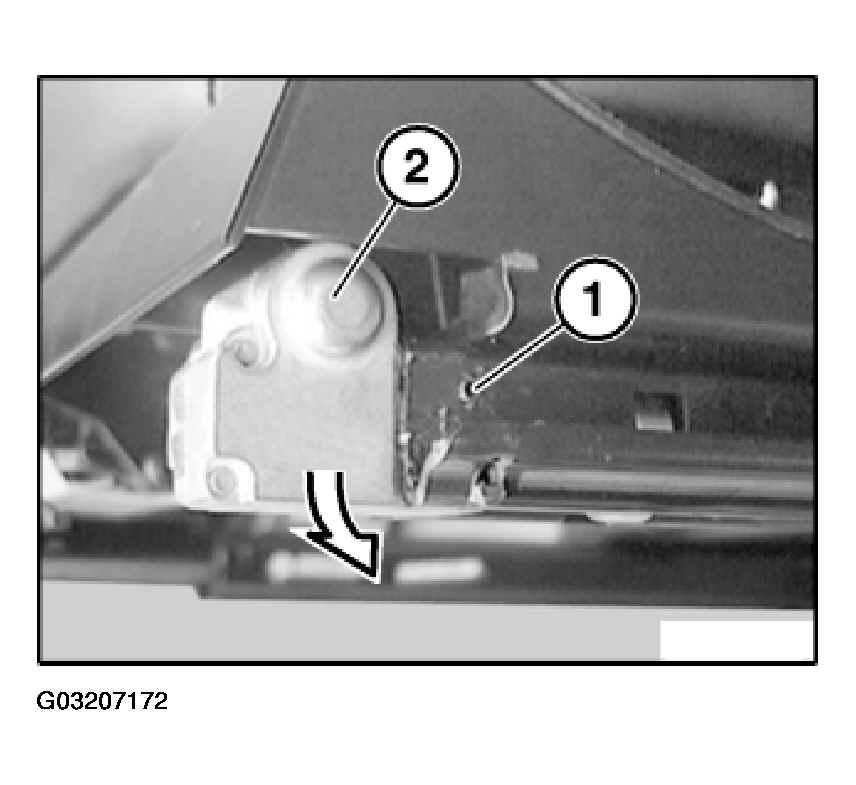

Courtesy of BMW OF NORTH AMERICA, INC.

Detach gearing (2) downwards from guide rail.

Twist out gearing (1) together with spindle (2).

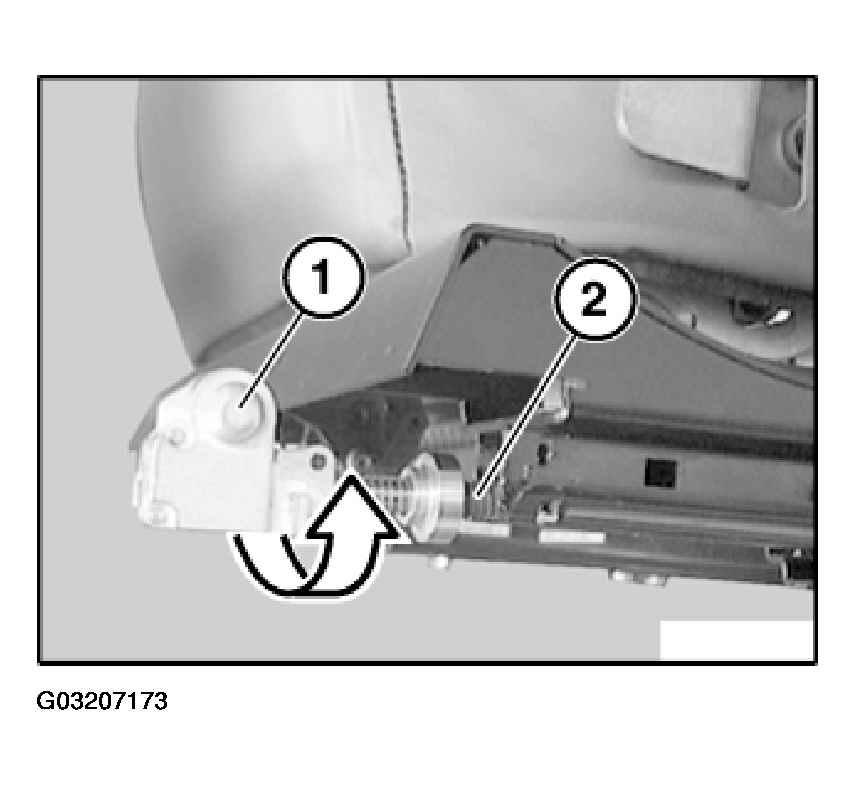

Fig 3: Twisting Out Gearing With Spindle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align guide rails before installing flex shafts. Distance (A) must be the same on both guide rails.

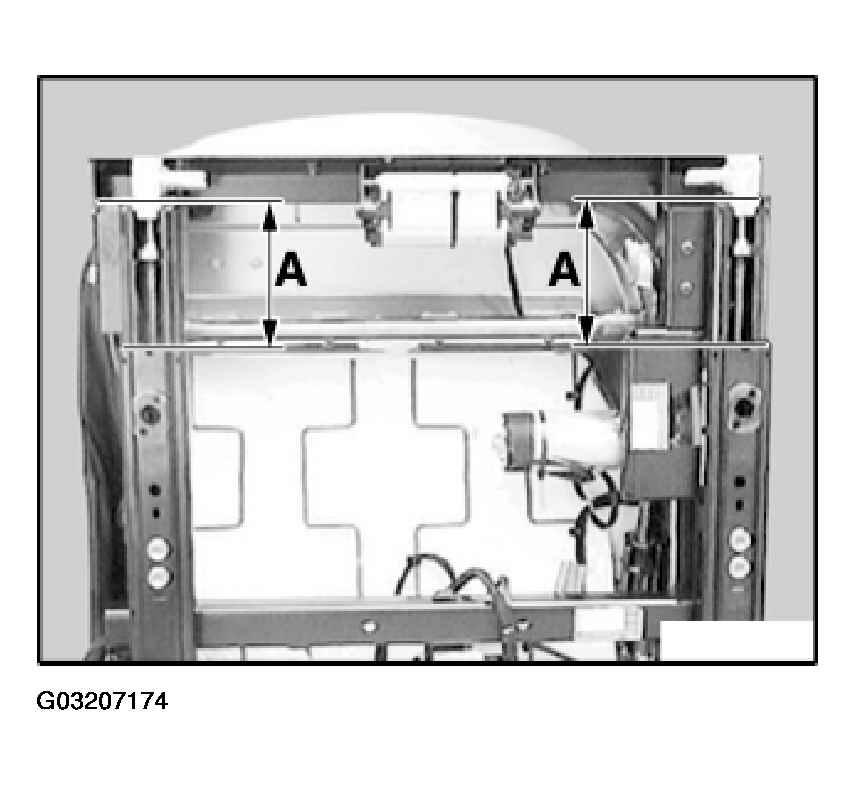

Fig 4: Aligning Guide Rails

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, turn spindle over gearing by hand.

Flex shafts are fitted to bearings without connecting pieces.

Installation:

Carry out function check.
