Mounting bearing strip

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2011 BMW 328xi, 2011 BMW 328i, 2011 BMW 323i, 2010 BMW 328xi, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Pre-install special tool 11 4 462 on cylinder no. 2.

Insert special tool 11 4 463 in screw connection of cylinder head cover.

IMPORTANT: Special tool 11 4 463 is a special screw.

Fig 1: Identifying Rocker Arms And Spindle Nut With Special Tools (11 4 463 And 11 4 462)

Courtesy of BMW OF NORTH AMERICA, INC.

Press down rocker arms (3) on cylinder no. 2 with spindle nut (2) of special tool 11 4 462.

Installation:

Before mounting the exhaust camshaft on the correct cam follower seat (1), pay attention to the hydraulic valve clearance adjustment element and the valve.

Refer to removing and installing/replacing all CAM FOLLOWERS .

Fig 2: Identifying Cam Follower Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Position lower bearing strip (1) with exhaust camshaft (2) on rocker arms.

Align exhaust camshaft (2).

Cylinder nos. 2 and 4 are at valve overlap.

Cams (3) on cylinder no. 1 point upwards at an angle.

Part number (4) on mounting flats of exhaust camshaft (2) points upwards.

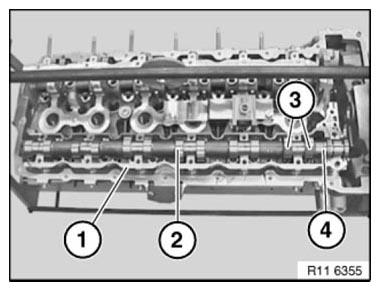

Fig 3: Identifying Cams, Part Number On Exhaust Camshaft And Bearing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There must be no adhesive residues in the cylinder head tapped holes.
