51 45 031 Replacing trim for instrument panel (lower section)

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel (lower section). Refer to 51 45 030 Removing and installing trim for instrument panel (lower section) .

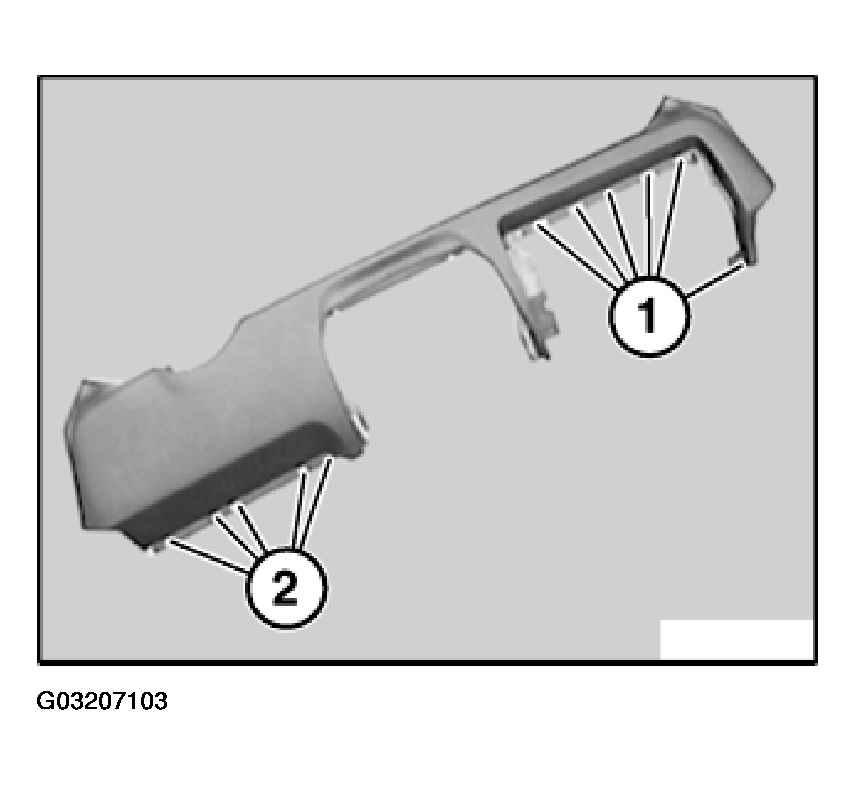

Remove metal nuts (1) and (2) from instrument panel.

Fig 1: Removing Metal Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

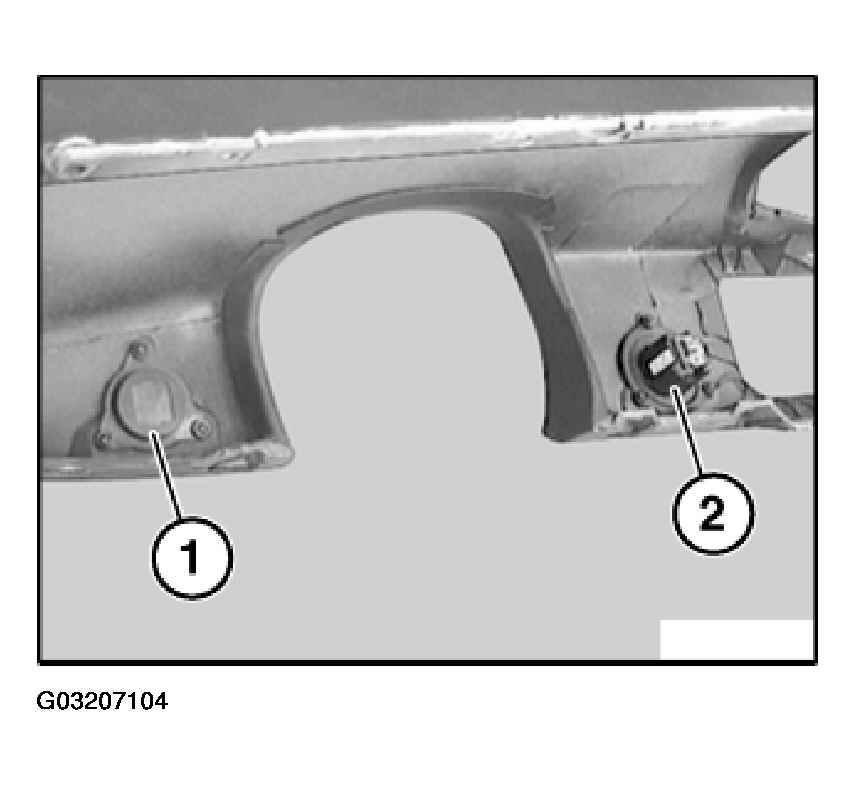

Release screws on installation frame (1) and (2).

Remove installation frame.

Fig 2: Removing Installation Frame

Courtesy of BMW OF NORTH AMERICA, INC.
