51 21 330 Removing and installing/replacing window cavity cover strip on inner front door

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove front door trim panel. Refer to 51 41 000 Removing and installing left or right front door trim panel .

Detach cover (1) from seal (2) and from front door (adhesive tape).

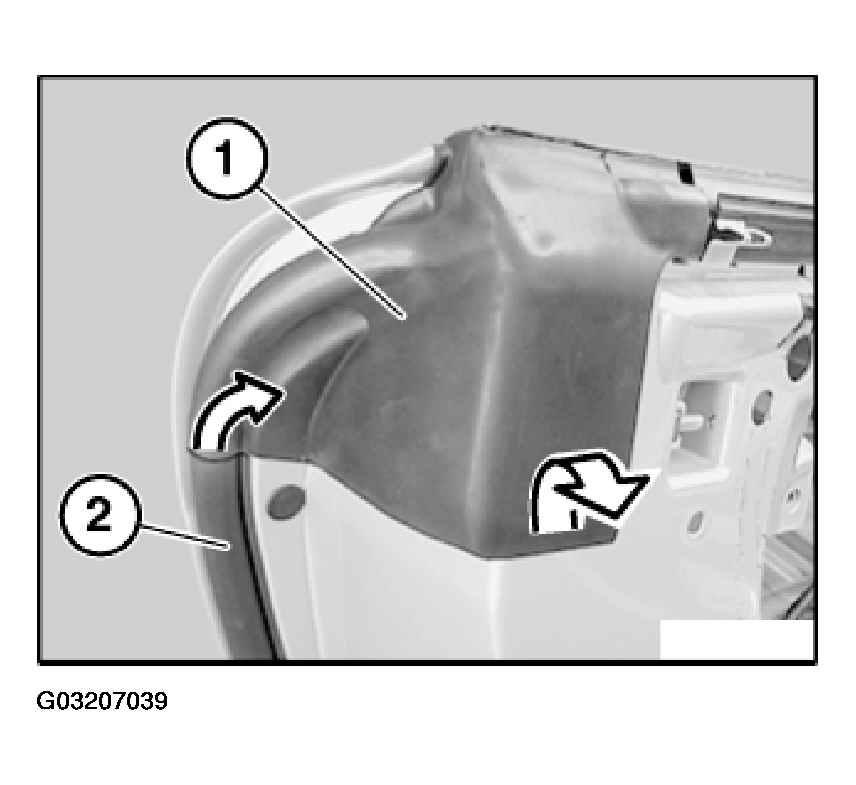

Fig 1: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove window cavity cover strip (1) towards top.

Installation:

If necessary, remove faulty clips (2) from inner door panel and replace.

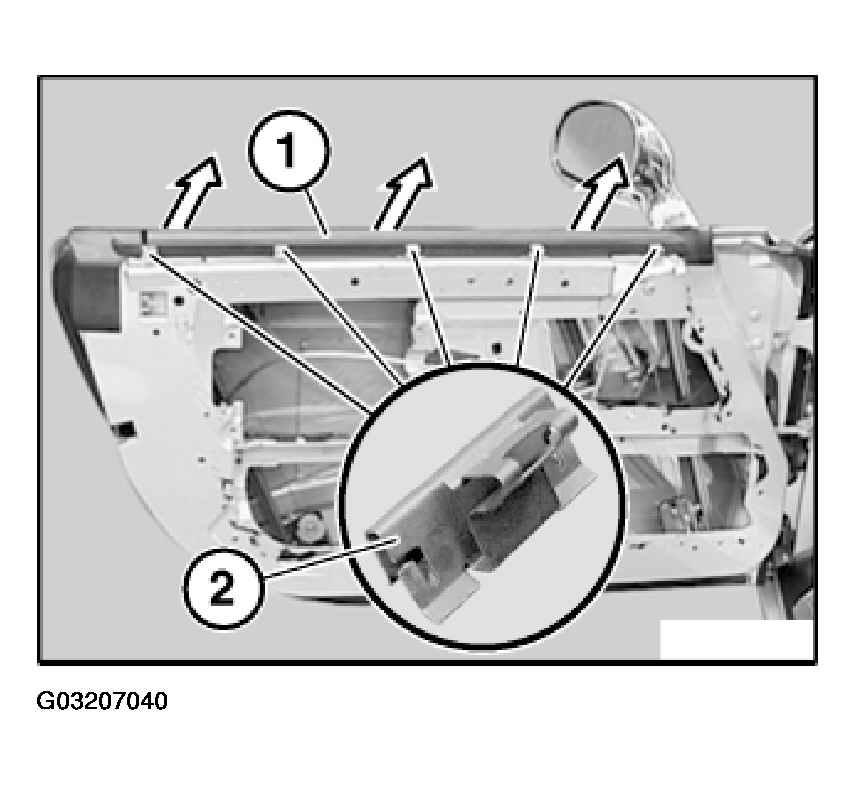

Fig 2: Removing Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Coat window cavity cover strip (1) with water prior to installation.
