51 11 794 Replacing a shock absorber (impact absorber) for front bumper

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Bumper removed.

If necessary, remove complete front bumper. Refer to 51 11 000 Removing and installing complete front bumper .

Left side:

Release nuts (1) and detach impact absorber (2).

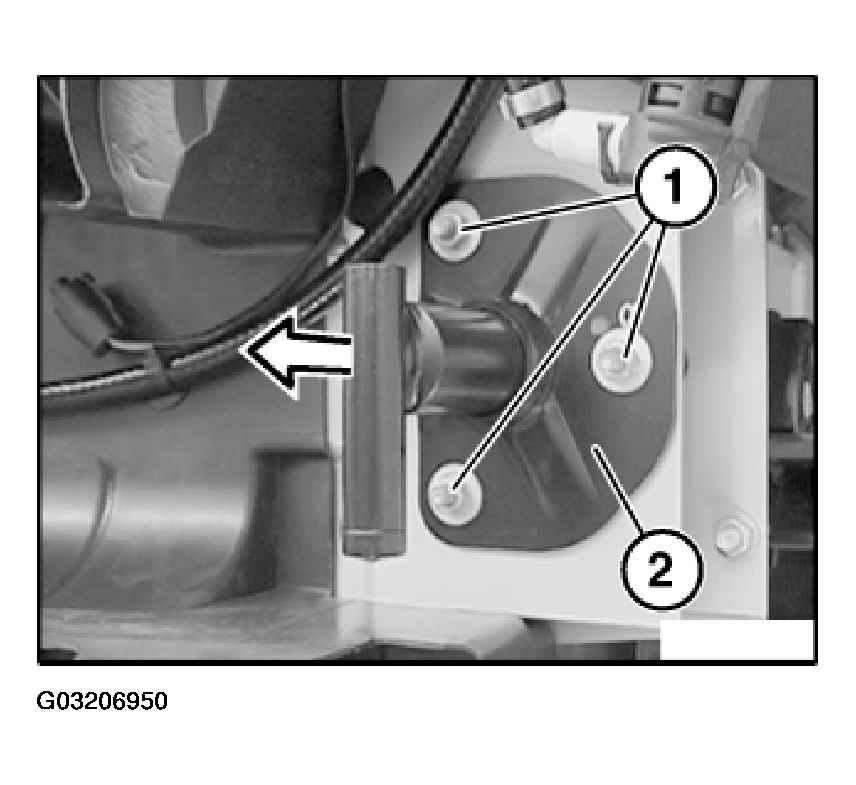

Fig 1: Detaching Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 11 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Right side:

Unscrew nuts (1).

Lift cover (2) over trailing eye mounts (3) and detach impact absorber (2).

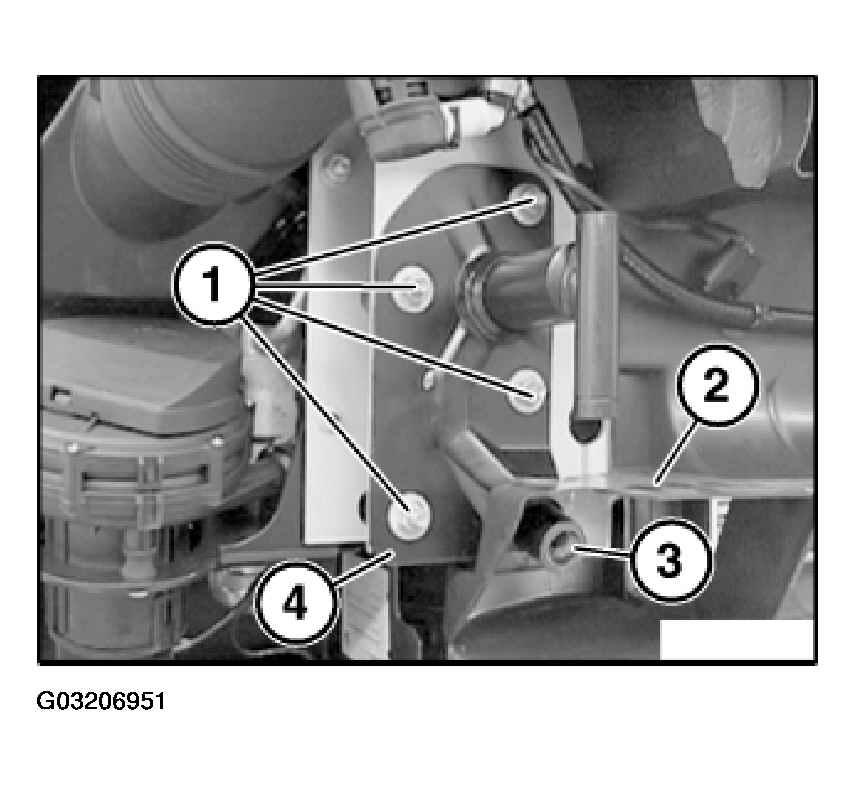

Fig 2: Detaching Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 51 11 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
