51 31 015 Repairing damage to windscreens caused by pitting (stone chips) (clear and tinted laminated safety glass)

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Field of vision (no repairs acceptable):

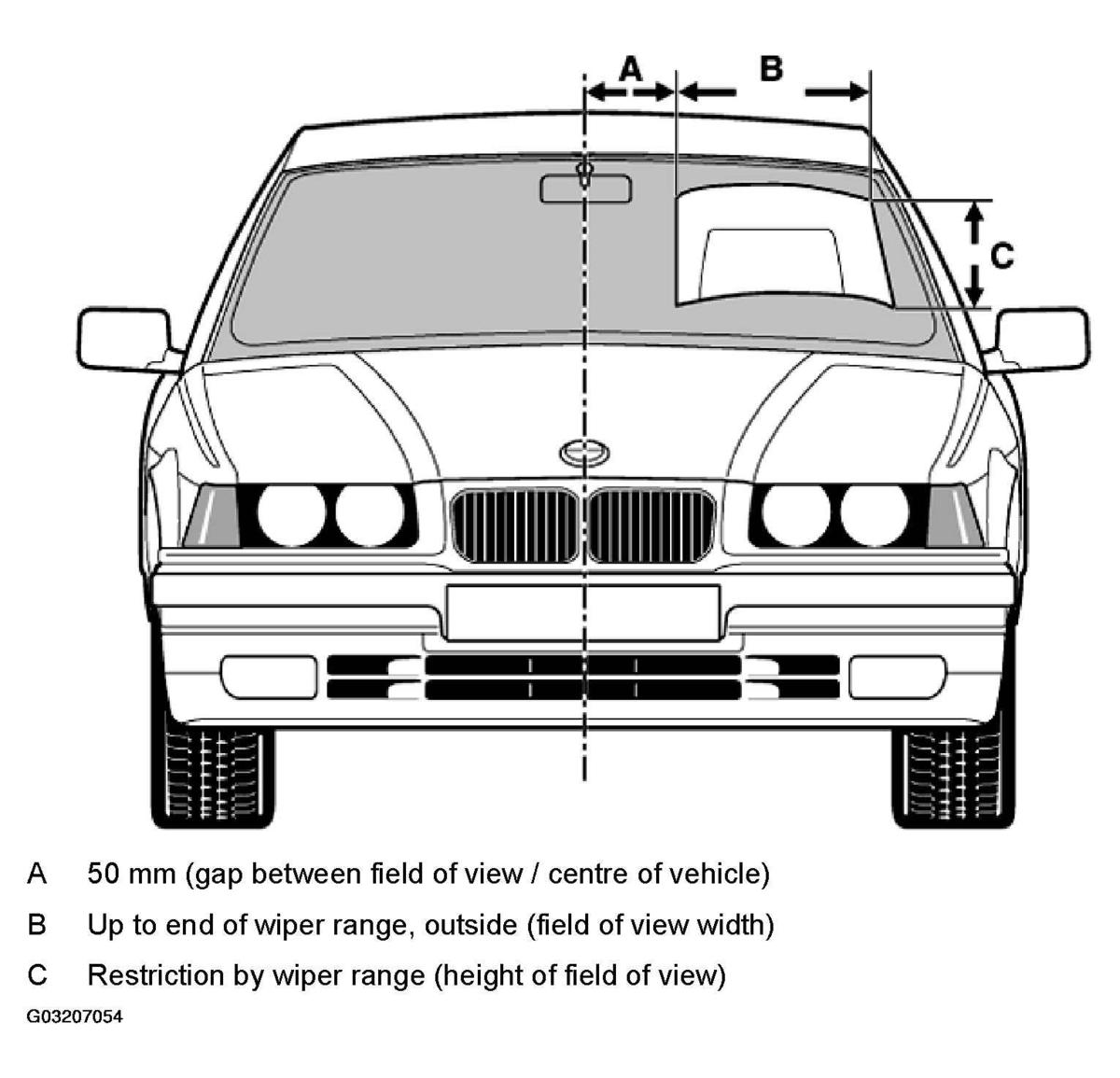

Fig 1: Identifying Field Of Vision
G03207054Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Repairs must only be carried out outside of the field of vision .

If the stone chip damage is outside the field of vision, refer to 51 31 ... Instructions for repairing stone-chipped laminated safety glass windscreens (clear and tinted) .
