3121090 Replacing (removing and installing) left or right swivel bearing (AWD): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2013 BMW 328xi, 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 335xi, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove FRONT WHEEL .

IMPORTANT: Expand turning lock sufficiently to avoid damaging thread when releasing collar nut.

Release collar nut; to do so, press brake pedal to floor.

Installation:

Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down.

No oil permitted on thread of shaft journal or collar nut.

Tightening torque 31 21 2AZ .

Fig 1: Locating Collar Nut

G04745166

Courtesy of BMW OF NORTH AMERICA, INC.

Secure collar nut by positive peening on flat areas of output shaft.

Remove brake disc. See 3411220 REMOVING AND INSTALLING OR REPLACING BOTH FRONT BRAKE DISCS (E90) or 34 11 220 REMOVING AND INSTALLING OR REPLACING BOTH FRONT BRAKE DISCS (E92) .

Replacement only: Drive out WHEEL HUB .

Remove pulse generator from swivel bearing. See 3452525 REPLACING ONE FRONT PULSE SENSOR (E90) or 34 52 525 REPLACING ONE FRONT PULSE GENERATOR (E92) .

Remove TIE ROD END FROM SWIVEL BEARING .

Remove GUIDE JOINT FROM SWIVEL BEARING .

Remove CONTROL ARM FROM SWIVEL BEARING .

Remove STABILIZER LINK FROM SPRING STRUT .

Turn swivel bearing to one side.

Press OUTPUT SHAFT OUT OF WHEEL HUB and tie up.

IMPORTANT:

Check sensor head and line from pulse generator prior to installation for external damage, replacing if necessary.

Support swivel bearing with workshop jack and a suitable mounting.

Release nut (1), remove holder (2) and remove screw (3).

Spread swivel bearing with special tool 31 2 230.

Lower workshop jack and remove swivel bearing.

Installation:

Keep press fit of swivel gearing and spring strut in lower area clean and free from oil and grease.

Screw head must point in direction of travel.

Replace self-locking nut.

Tightening torque 31 31 3AZ .

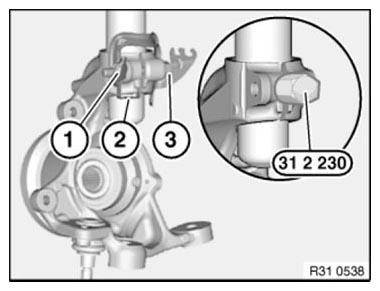

Fig 2: Spreading Swivel Bearing Using Special Tool (31 2 230)

G06903654

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Expand swivel bearing with special tool 31 2 230, align by way of gap to positioning pins (1) on back of spring strut and raise up to stop.

Fig 3: Expanding Swivel Bearing Using Special Tool (31 2 230)

G06903655

Courtesy of BMW OF NORTH AMERICA, INC.
