31.... Layout of spring strut shock absorber

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2013 BMW 328xi, 2012 BMW 328xi, 2011 BMW 328xi, 2010 BMW 335xi, and 2010 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

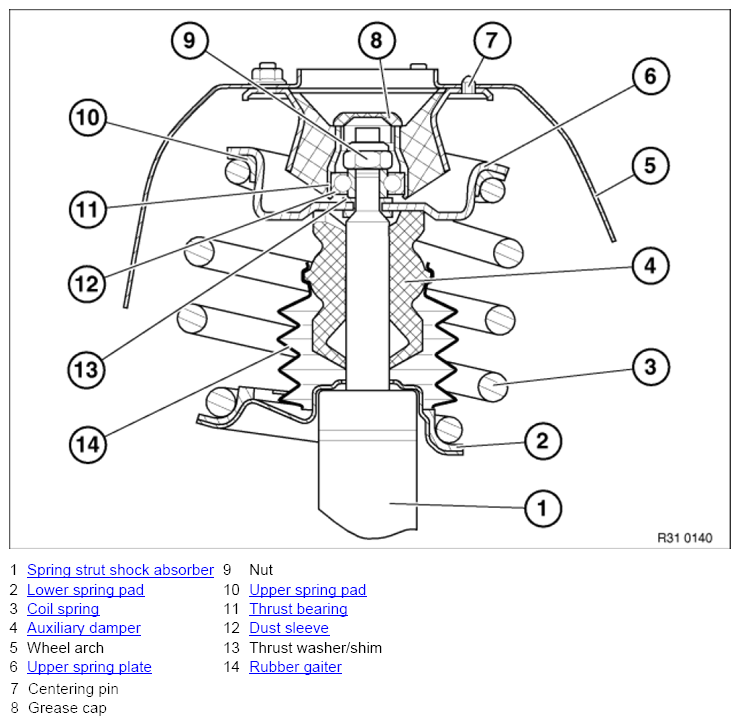

Fig 1: Layout Of Spring Strut Shock Absorber
G06903616Courtesy of BMW OF NORTH AMERICA, INC.
