16 11 ... Removing and installing/replacing tank cap with cover pot

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Unhook retaining strap from fuel filler flap.

Open cap and set to one side.

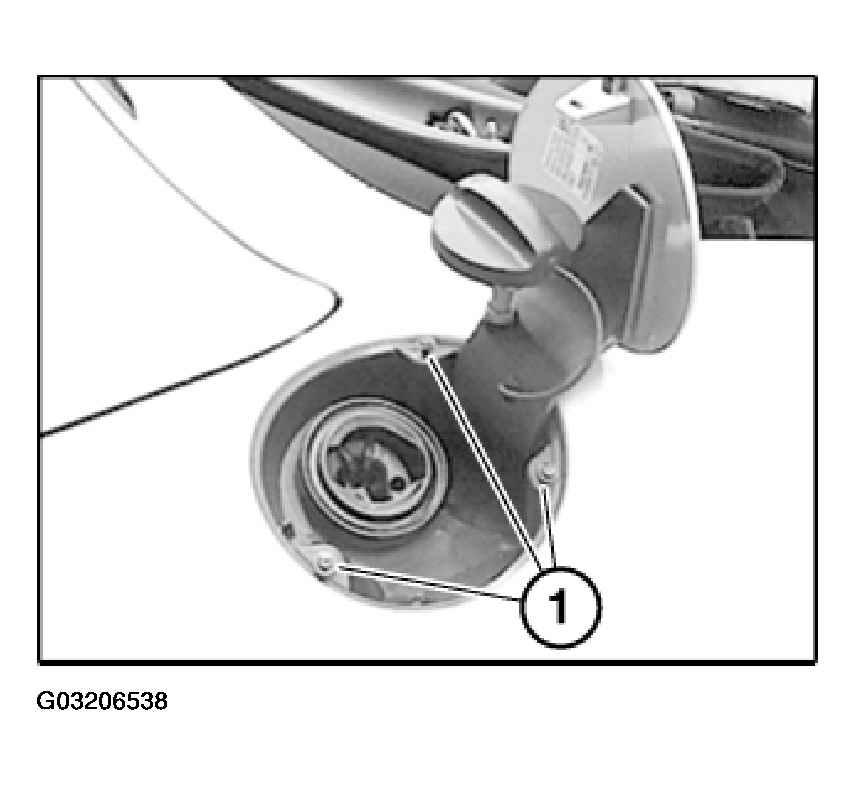

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rear right wheel.

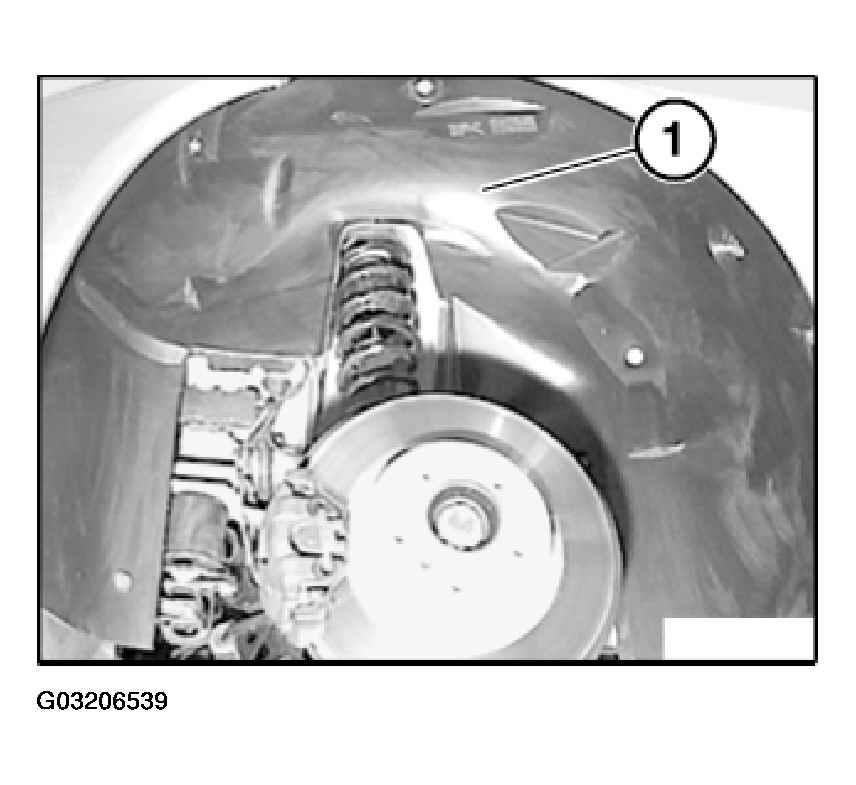

Remove wheel arch trim (1) at rear right.

Fig 2: Removing Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

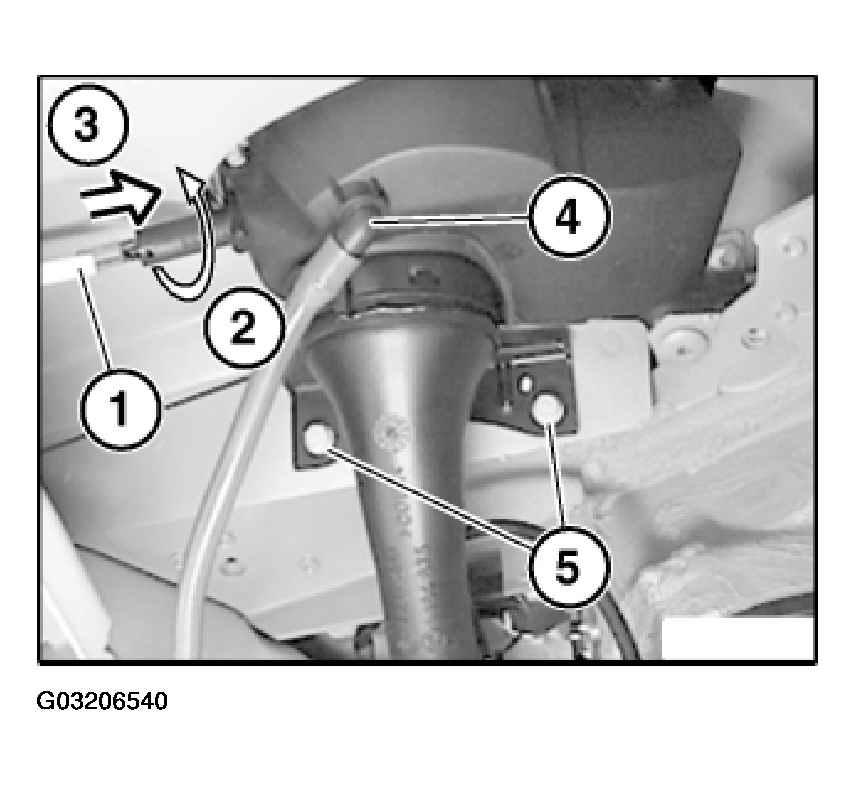

Unhook central locking Bowden cable (1).

Fig 3: Locating Components

Courtesy of BMW OF NORTH AMERICA, INC.

Turn central locking lock (2) and press into cover pot (3).

Detach hose fitting (4) and do not lose sealing ring.

Release screws (5).

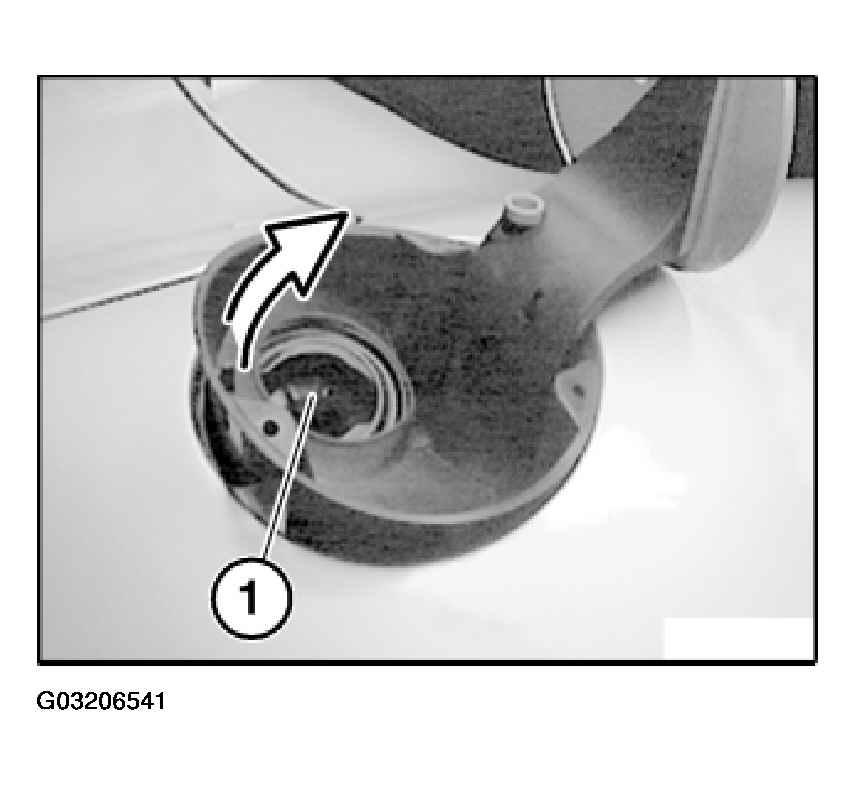

Carefully press cover pot with rubber sleeve over fuel filler pipe (1).

Guide with other hand from below.

Fig 4: Pressing Cover Pot With Rubber Sleeve Over Fuel Filler Pipe

Courtesy of BMW OF NORTH AMERICA, INC.
