16 11 ... Removing and installing/replacing overflow hose on cover pot

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear right wheel.

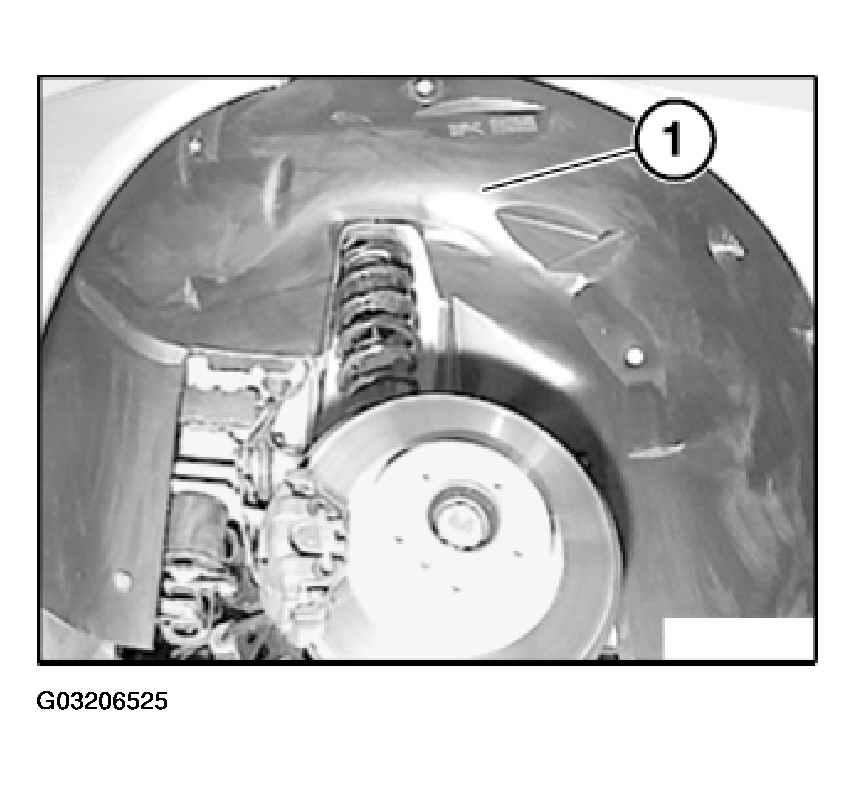

Remove wheel arch trim (1) at rear right.

Fig 1: Removing Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

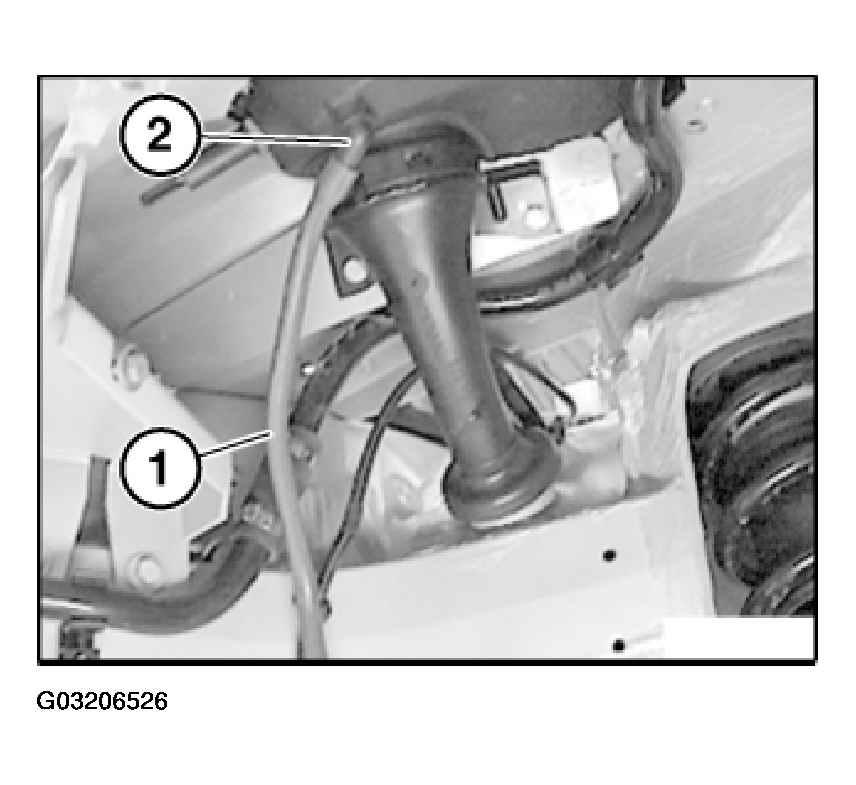

Detach overflow hose (1) with hose fitting (2) and do not lose sealing ring.

Fig 2: Identifying Overflow Hose With Hose Fitting

Courtesy of BMW OF NORTH AMERICA, INC.

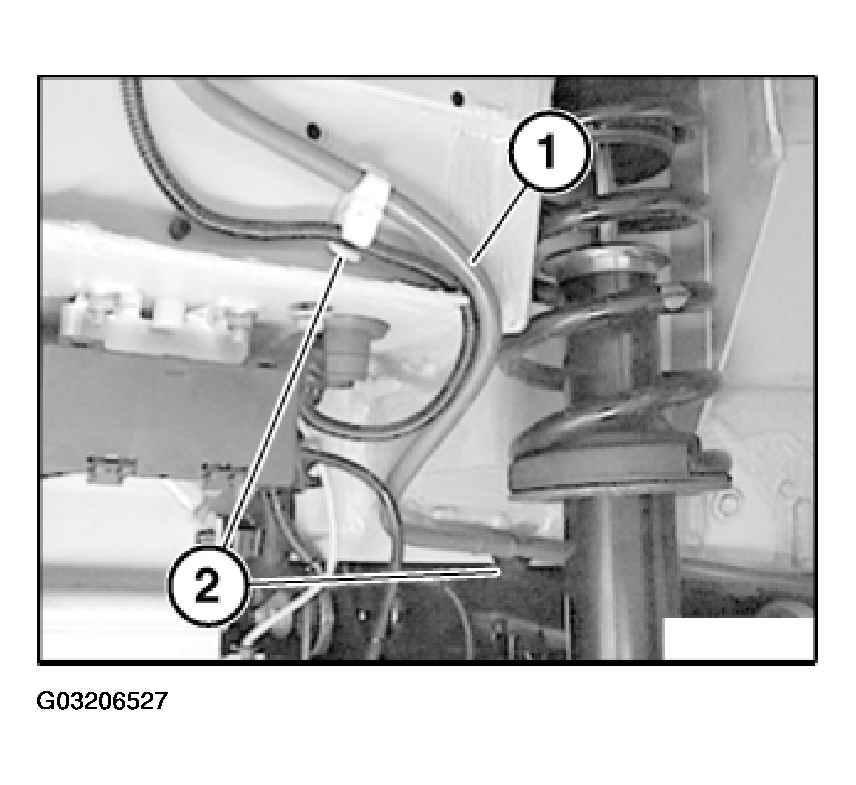

Carefully press overflow hose (1) out of clamps (2).

Fig 3: Pressing Overflow Hose Out Of Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

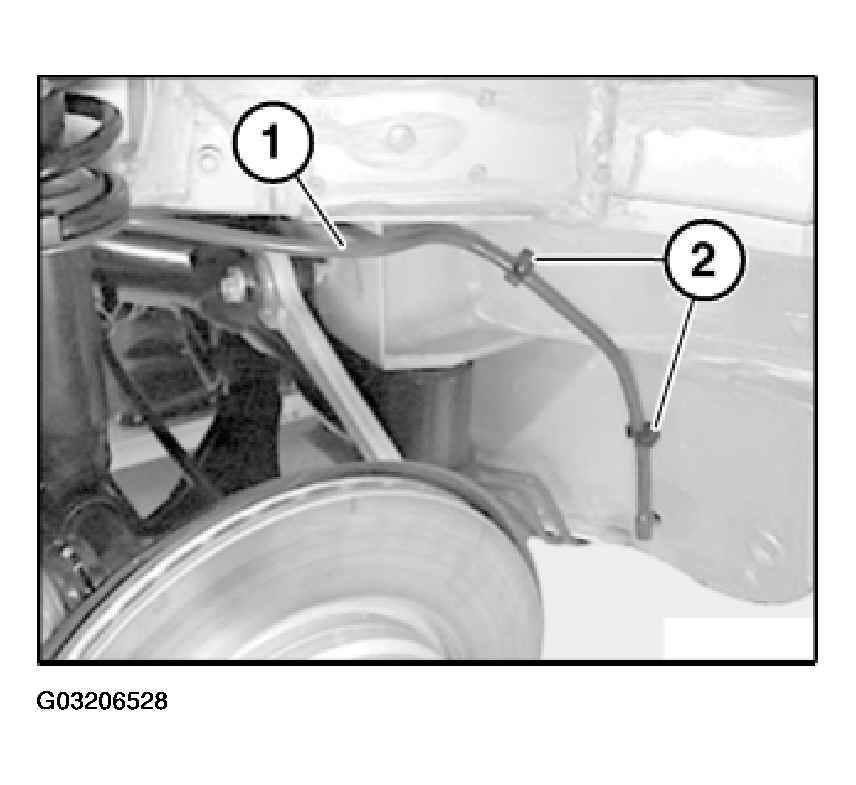

Carefully press overflow hose (1) out of clamps (2) and remove.

Fig 4: Pressing Overflow Hose Out Of Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: During installation, make sure clamps (2) are correctly positioned as these clamps are pivoted.
