62 30 517 Adjusting head-up display
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Vehicles with head-up displays are fitted with special windscreens.

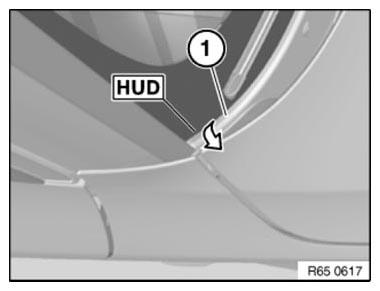

These windscreens are marked with the letters "HUD" on the outside at the bottom right below the seal (1) .
Prior to adjustment, fold seal (1) back and make sure that a correct windscreen is fitted.
Connect vehicle to BMW diagnosis system.
Select service function under following path:
- Service function
- Body
- Head-Up Display
- Adjusting head-up display
NOTE:
The geometric representation of the Head-Up Display can be adjusted with the service function.
