62 30 005 Removing and installing/replacing trim for Head-Up Display

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out trim for Head-Up Display (1) with special tool 00 9 317 at mounting points (2).

Feed cover for Head-Up Display (1) in direction of arrow out of instrument panel trim (2) and remove.

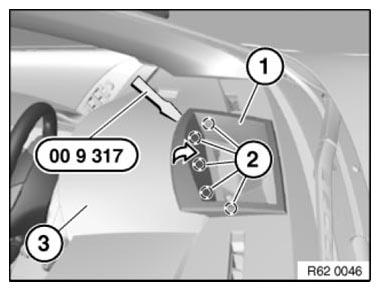

Fig 1: Removing Head-Up Display Using Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining lugs (1) and (2) and sleeve (3) of cover for Head-Up Display (4) are correctly seated.

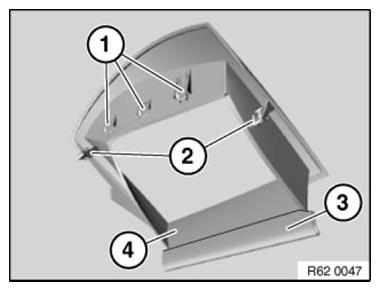

Fig 2: Identifying Lugs, Sleeve Of Cover And Head-Up Display

Courtesy of BMW OF NORTH AMERICA, INC.
