84 31 550 Removing and installing/replacing hands-free microphone, driver's side

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out microphone cover (1) at front in direction of arrow.

Disconnect plug connection underneath and remove microphone cover (1).

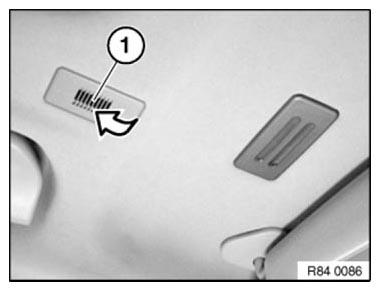

Fig 1: Removing Microphone Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining lug (1) and feed out hands-free microphone (2) in direction of arrow.

Installation note:

Arrow on hands-free microphone (2) points in direction of travel.

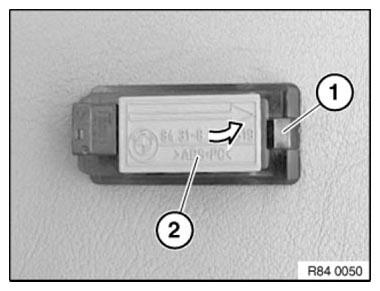

Fig 2: Removing Hands-Free Microphone

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the handsfree microphone or emergency call button results in fault memory entries in the telephone control unit (limitation in the emergency call system).

After fitting, read out fault memory and if necessary delete entries.
