72 11 092 Removing and installing or replacing rear left or right seat belts

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove rear window shelf. See REMOVING TRIM PANEL FOR STORAGE SHELF or REMOVING TRIM PANEL FOR STORAGE SHELF (WITH ROLLER SUNBLIND) .
Remove REAR SEAT .

Removing left or right automatic reel:

Release screw (1).

Tightening torque 72 11 21AZ .

Installation note:

End fitting is coded against incorrect assembly.

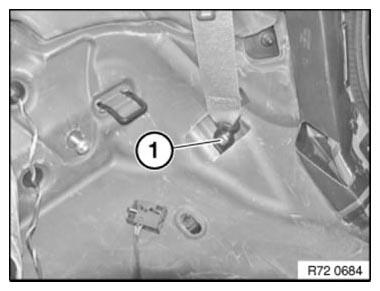

Fig 1: Identifying Right Seat Belt Screw

G06886640

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 20AZ .

Remove automatic reel (2) with end fitting.

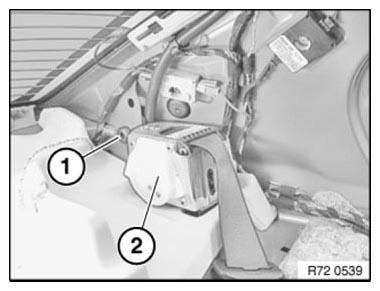

Fig 2: Identifying Automatic Reel Screw

G06886641

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to encoding.

Push inertia reel unit (1) onto body tab (2).

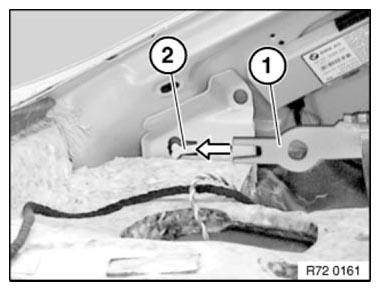

Fig 3: Pushing Inertia Reel Unit Onto Body Tab

G06886642

Courtesy of BMW OF NORTH AMERICA, INC.
