72 11 033 Removing and installing/replacing front left or right seat belt

Necessary preliminary tasks:

• Remove trim panels for door pillar. See REMOVING TRIM FOR DOOR PILLAR (BOTTOM) and REMOVING TRIM PANEL ON DOOR POST (TOP) .

Installation note:

• Microencapsulated screws (Loctite) must be replaced and may not  be reused
• Screw connection must be completed within 20 minutes (start of hardening)
• Microencapsulated screws must not  be retightened
• Clean thread of nut beforehand in event of repeated use

Version with anchor fitting tensioner:

Necessary preliminary tasks:

• Remove OUTER COVER

Release screw (1).

Tightening torque 72 11 7AZ .

Remove lock washer.

Pull belt strap (2) out of end fitting pretensioner.

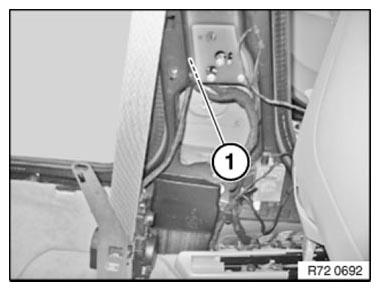

Fig 1: Pulling Belt Strap Out Of End Fitting Pretensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Version without anchor fitting tensioner:

Move front seat upwards.

Release screw (1) on front seat.

Installation note:

Replace screw.

Tightening torque 72 11 2AZ .

Feed out belt anchor fitting (2).

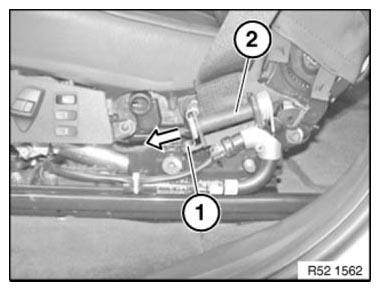

Fig 2: Identifying Front Seat Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque 72 11 4AZ .

Remove seat belt guide loop.

Release screws (1).

Installation note:

Replace screws (1).

Remove belt deflector.

Tightening torque 72 11 5AZ .

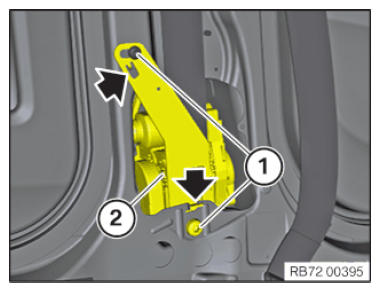

Fig 3: Identifying Belt Deflector Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Installation note:

Replace screw.

Tightening torque 72 11 1AZ .

Unlock automatic reel (2) and remove from B-pillar.

Installation note:

Automatic reel is encoded against incorrect installation (3).

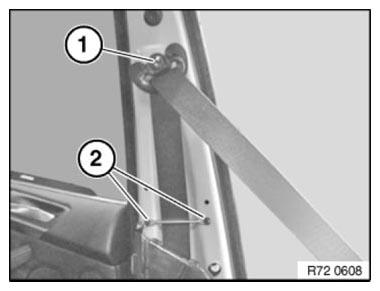

Fig 4: Identifying Automatic Reel With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

On versions with REMA seat belt / S5ALA Active Protection:

Release screws (1).

Installation note:

Replace screws.

Tightening torque 72 11 1AZ .

Pull out automatic reel (2).

Installation note:

Retractor mechanism is encoded against incorrect assembly.

Fig 5: Locating Automatic Reel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove complete seat belt.

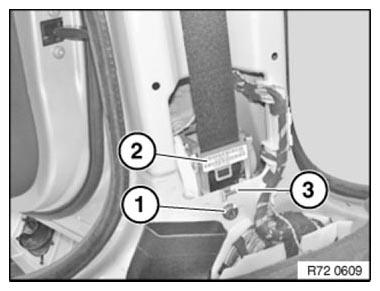

Fig 6: Identifying Seat Belt Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Carry out FUNCTION CHECK  .

During replacement with version REMA seat belt / S5ALA Active Protection:

Carry out VEHICLE PROGRAMMING/ENCODING .
