Airbag plug connection on gas generator/airbag module offset by 90°
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
There are two ways of unlocking this airbag plug connection on the gas generator/airbag module:
Method 1:

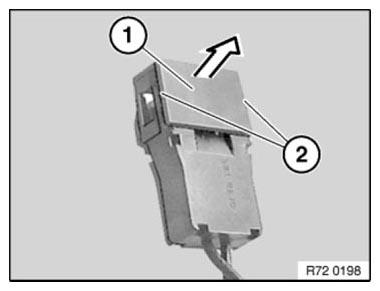

Simultaneously pull cover (1) upwards at lugs on left and right (2).
Method 2:

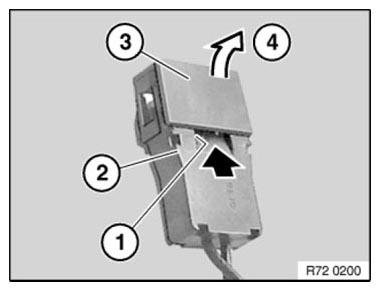

Insert a narrow screwdriver into recess (1) in housing (2).
Carefully pinch cover (3) off (4).

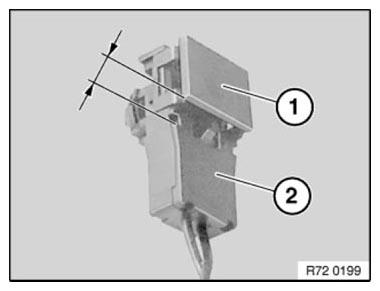

Cover (1) is not positioned higher than housing (2).
The airbag plug connection is unlocked and can now be detached from the gas generator/airbag module.
Installation note:

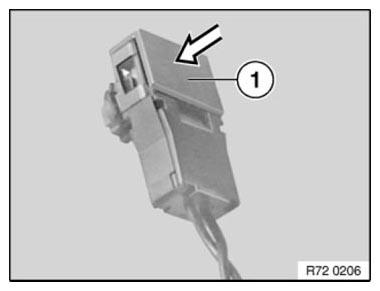

After attaching airbag plug connection to gas generator/airbag module, press cover (1) downwards until it rests flat on housing.
Check that it catches properly.
