72 12 006 Removing and installing/replacing airbag module for passenger knee protection
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Comply with SAFETY INFORMATION for handling airbag system components.
Incorrect handling can activate airbag and cause injury.
IMPORTANT:
Operations on pyrotechnical devices may only be carried out by authorized experts.
Improper, unauthorized operations may result in serious dangers.
Unauthorized persons are strictly prohibited from performing any operations on this system.
NOTE:
Airbag module for passenger knee protection is only installed in following national-market versions:
- US version
- European version for Korea (only F10 from 07/2013)
Necessary preliminary work:
- Remove TRIM FOR INSTRUMENT PANEL , bottom right

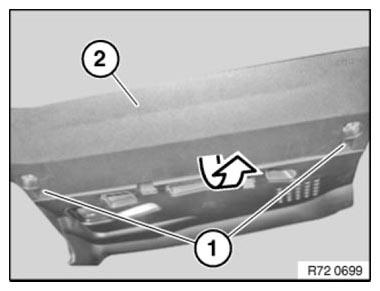

Release screws (1).
Tightening torque 72 12 3AZ .
Feed airbag module (2) in direction of arrow out of instrument panel trim and remove.
Installation note:

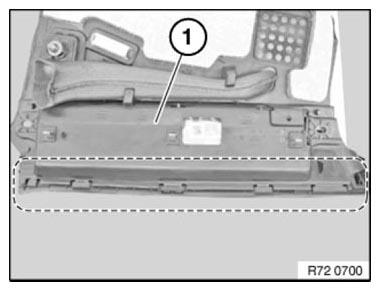

Make sure airbag module (1) is correctly seated in instrument panel trim.
