63 13 080 Removing and installing/replacing left turn indicator insert (LED headlight): Notes

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEADLIGHT

Release screws (1) on headlight.

Tightening torque 63 12 6AZ .

Pull turn indicator insert (2) out of headlight.

Fig 1: Identifying Turn Indicator Insert And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on turn indicator insert (2).

Installation note:

Seal (3) and guides (4) on turn indicator insert (2) must not be damaged or missing.

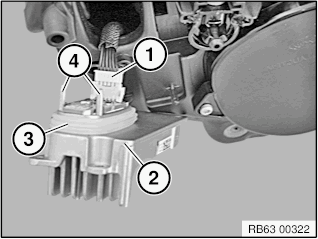

Fig 2: Identifying Turn Indicator Insert, Connector, Seal, And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
