63 31 085 Removing and installing/replacing luggage compartment lamp (on rear lid)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Lever out luggage compartment lamp (1) at openings (2) in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment lamp (1).

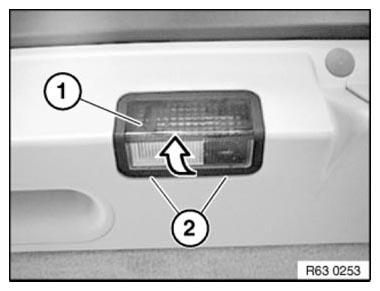

Fig 1: Removing Luggage Compartment Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, convert bulbs
Note BULB TYPE .

Remove cover (1) in direction of arrow.

Remove bulb underneath.

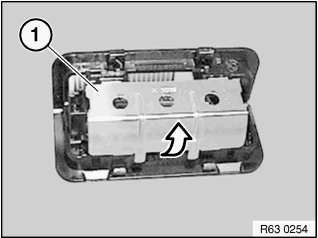

Fig 2: Removing Cover To Access Bulb

Courtesy of BMW OF NORTH AMERICA, INC.
