67 16 011 Removing and installing/replacing left headlight vertical aim adjuster: Notes
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights:
Danger to life due to high voltage!
Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (control unit, ignition unit with lamp) may only be carried out by specialist personnel.
Necessary preliminary work:
- Remove headlight. See REMOVING AND INSTALLING OR REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) or REMOVING AND INSTALLING OR REPLACING LEFT HEADLIGHT (ADAPTIVE HEADLIGHT) .
Release screws (1) on cover (2) and remove from headlight (3).
Tightening torque 63 12 4AZ .
Release screws (1).
Disconnect plug connection (2).
Snap headlight vertical aim adjuster (3) out of mounting.
NOTE:
Opening cover (4) makes it easier to feed in and engage vertical aim adjuster (3).

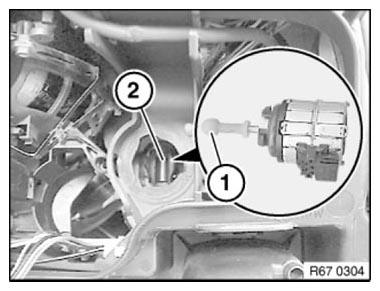

Engage ball head of vertical aim adjuster (1) in mounting (2).
