63 12 870 Replacing ignition unit for left xenon headlight
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS)
Necessary preliminary work:
- Remove LEFT HEADLIGHT

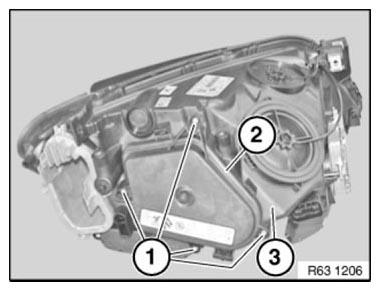

Release screws (1) on cover (2) and remove from headlight (3).
Tightening torque 63 12 4AZ .
Installation note:
The housing cover must be locked correctly.
Check seal.
Replace the housing cover, if necessary.
Observe NOTES FOR REPLACING THE PROTECTIVE CAP .
Disconnect plug connection (1) on ignition unit with bulb (3).
Unlock retainer (2) and remove ignition unit with bulb (3) in direction of arrow.
Recommendation:
Check HEADLIGHT ADJUSTMENT , correct if necessary.
