63 11 840 Replacing left LED fan left (outer)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove HEADLIGHT WITH LED TECHNOLOGY

Open screw lock (1).

Release screws (2) and remove protective cap (3).

Tightening torque: 1.5 Nm

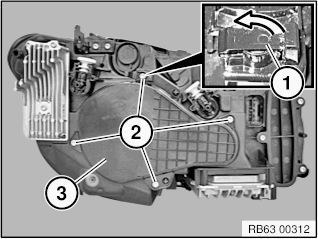

Fig 1: Opening Screw Lock To Release Screws And Protective Cap

G00523557

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check seal (1). Replace protective cap (2) if necessary.

IMPORTANT: Risk of damage due to moisture penetration!

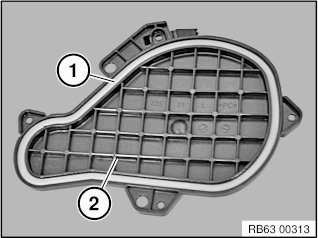

Fig 2: Identifying Protective Cap Seal

G00523558

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Unfasten screws (2).

Tightening torque: 1.5 Nm

Remove LED fan (3).

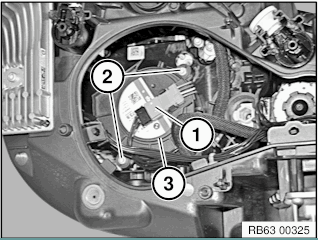

Fig 3: Identifying LED Fan, Screws, And Connector

G00523565
