63 11 570 Removing and installing/replacing left headlight driver module (LED headlight)

WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

Remove HEADLIGHT WITH LED TECHNOLOGY

Release screws (1).

Tightening torque: 1.65 Nm

Pull headlight driver module (2) out of the headlight.

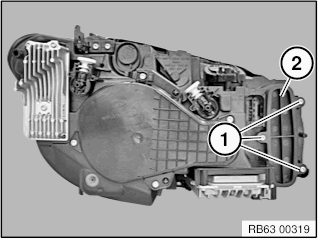

Fig 1: Identifying Headlight Driver Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Gasket (1) must not be damaged and must be installed free from grease.

Guides (2) must not be damaged or missing.

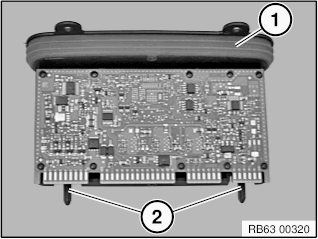

Fig 2: Identifying Gasket And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in headlight driver module (1) via vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
If applicable, carry out encoding
